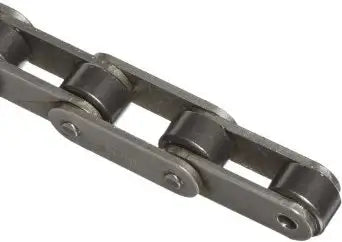

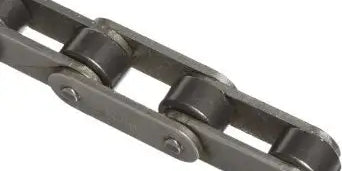

C2062H Roller Chain - 10ft Box

Roller Chain > More Roller Chains > Double Pitch Roller Chain > Double Pitch Conveyor Roller Chain > C2062H Conveyor Chain

C2062H Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: ECO-C2062H-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715132195183" , "metafield_value":""}]
C2062H Roller Chain - 10ft Box Features
C2062H Roller Chain - 10ft Box Specifications
This C2062H roller chain is manufactured to ANSI Specifications and is a good quality roller chain. It features oversized rollers making it good for a wide range of conveying, drive, and carry applications. C2062H roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. In addition to plain C2062H chain we also offer a full line of attachment and C2062H sprockets! Fore more information or to get a quote on sprockets or attachment chain please contact us and we will be happy to assist you.

C2062H Roller Chain Dimensions


C2062H Roller Chain - 10ft Box
  • Chain Size: C2062H
  • Pitch (P): 1.500"
  • Roller Width (W): 0.500"
  • Roller Diameter (R): 0.875"
  • Plate Height (H): 0.683"
  • Plate Thickness (T): 0.125"
  • Pin Diameter (D): 0.234"
  • Chain Width (F): 1.172"
  • Connecting Link Width (G): 1.248"
  • Tensile Strength: 8,150 LBS
  • Weight: 1.455 LBS/ FT

C2062H Roller Chain Sprockets

On top of the chain we also stock a full line of premium quality sprockets. Checkout the chart below for the stock sizes and dimensions.
Stock C2062H Chain Sprockets
Sprocket Size Tooth Count Outside Diameter Stock Bore Maximum Bore Length Thru Bore Weight
8 4.520" 3/4" 1-27/32" 1-1/4" 2.60 LBS
9 5.020" 3/4" 2-9/32" 1-1/4" 3.48 LBS
10 5.520" 3/4" 2-9/16" 1-1/4" 4.54 LBS
11 6.010" 3/4" 2-3/4" 1-1/4" 5.20 LBS
12 6.500" 3/4" 2-3/4" 1-1/4" 5.70 LBS
13 6.990" 3/4" 2-3/4" 1-1/4" 6.28 LBS
14 7.470" 3/4" 2-3/4" 1-1/4" 6.82 LBS
15 7.960" 3/4" 2-3/4" 1-1/4" 7.48 LBS
16 8.440" 1" 2-3/4" 1-1/4" 8.18 LBS
17 8.920" 1" 2-3/4" 1-1/4" 8.82 LBS
18 9.410" 1" 2-3/4" 1-1/4" 9.36 LBS
19 9.890" 1" 2-3/4" 1-1/4" 11.10 LBS
20 10.370" 15/16" 2-3/4" 1-1/4" 11.66 LBS
21 10.850" 15/16" 2-3/4" 1-1/4" 13.24 LBS
22 11.330" 15/16" 2-3/4" 1-1/4" 13.78 LBS
23 11.810" 15/16" 2-3/4" 1-1/4" 14.90 LBS
24 12.290" 15/16" 2-3/4" 1-1/4" 15.66 LBS
25 12.770" 15/16" 2-3/4" 1-1/4" 16.80 LBS
26 13.250" 15/16" 2-3/4" 1-3/4" 20.20 LBS
28 14.210" 1-1/4" 2-3/4" 1-3/4" 21.86 LBS
30 15.170" 1-1/4" 2-3/4" 1-3/4" 26 LBS
