Roller Chain > Roller Chain by Size > #100 Roller Chain

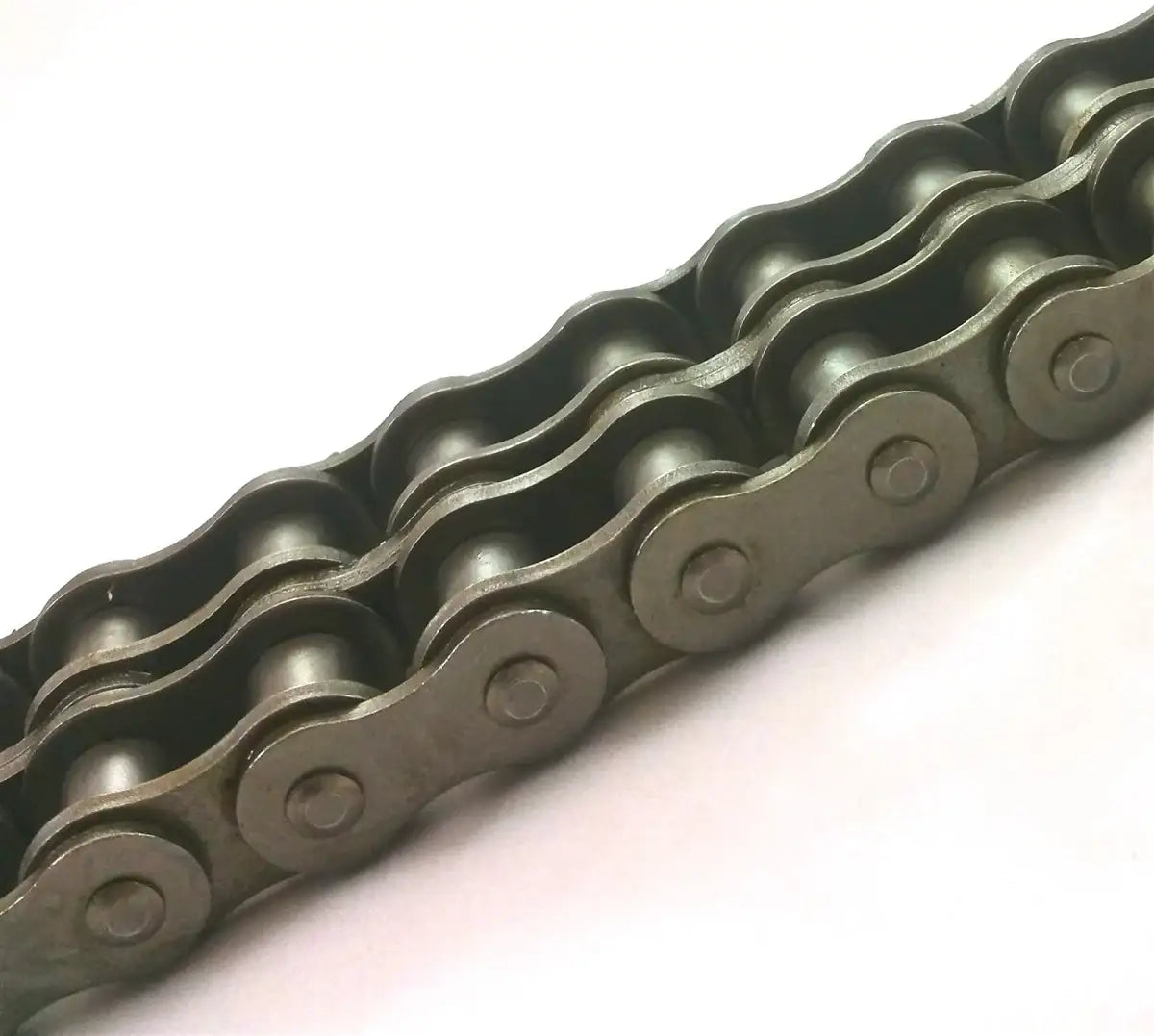

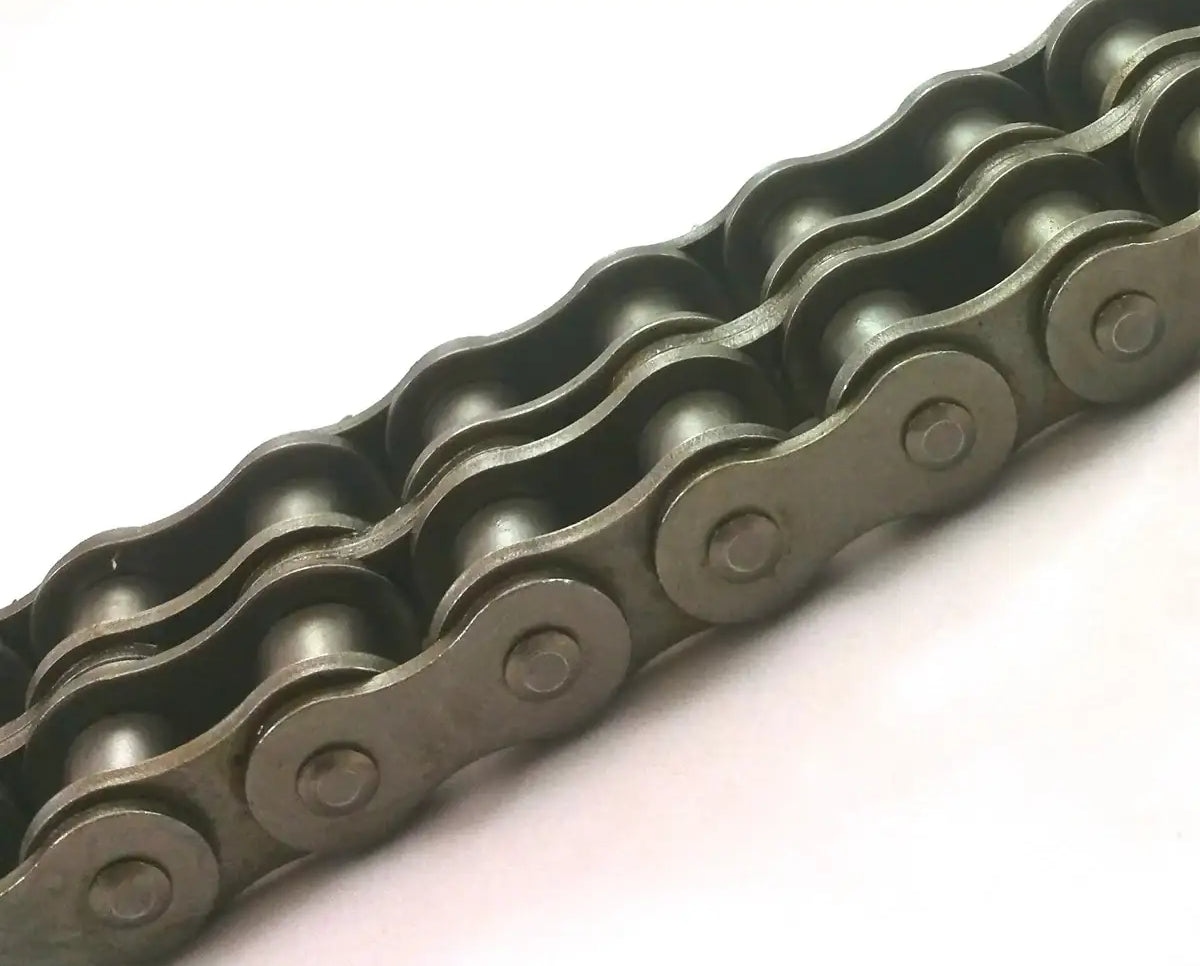

General Duty Plus #100-2 Roller Chain - 10ft Box
Login to Request a Quote
This #100-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #100-2 double strand roller chain has a tensile strength of 51,300lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #100-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #100-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

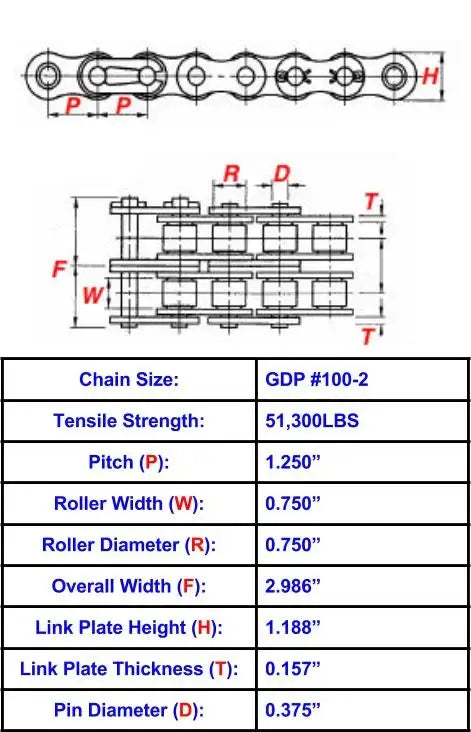

#100-2 Roller Chain Dimensions
Chain Size: #100-2 Tensile Strength: 51,300lbs Pitch (P): 1.250" Roller Width (W): 0.750" Roller Diameter (R): 0.750" Overall Chain Width (F): 2.986" Link Plate Height (H): 1.188" Link Plate Thickness (T): 0.157" Pin Diameter (D): 0.375" Specifications Met: ANSI Standards
Chain Size: #100-2 Tensile Strength: 51,300lbs Pitch (P): 1.250" Roller Width (W): 0.750" Roller Diameter (R): 0.750" Overall Chain Width (F): 2.986" Link Plate Height (H): 1.188" Link Plate Thickness (T): 0.157" Pin Diameter (D): 0.375" Specifications Met: ANSI Standards
