Roller Chain > Roller Chain by Size > #180 Roller Chain

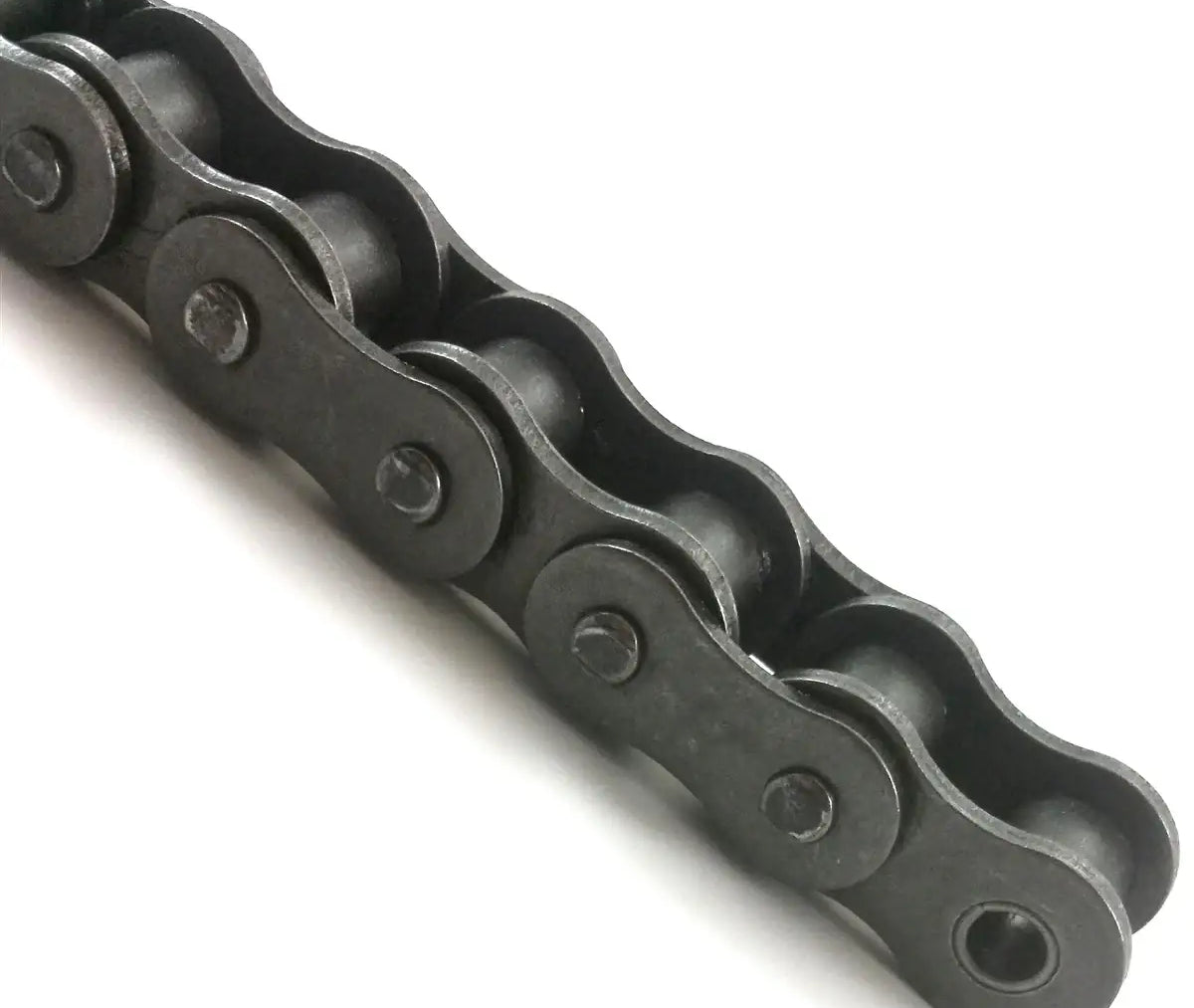

General Duty Plus #180 Roller Chain - 10ft Box
Login to Request a Quote
This #180 roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat treated components that drastically increase the chains strength, working life, and overall performance. This #180 roller chain has a tensile strength of 79,800lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #180 roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #180 Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.
#180 Roller Chain Dimensions
- Chain Size: #180 Roller Chain
- Tensile Strength: 79,800lbs
- Pitch (P): 2.250"
- Roller Width (W): 1.406"
- Roller Diameter (R): 1.406"
- Plate Height (H): 2.135"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.687"
- Overall Width (F): 2.780"
- Chain Size: #180 Roller Chain
- Tensile Strength: 79,800lbs
- Pitch (P): 2.250"
- Roller Width (W): 1.406"
- Roller Diameter (R): 1.406"
- Plate Height (H): 2.135"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.687"
- Overall Width (F): 2.780"
