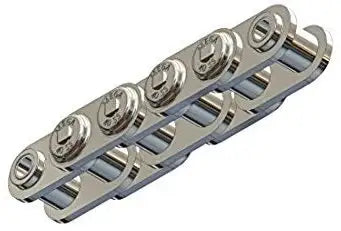

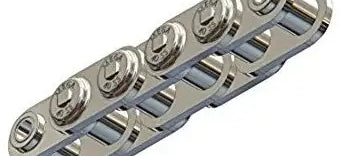

#50 Mega Stainless Steel Roller Chain - 10ft Box
Login to Request a Quote
Dimensions:
- Chain Size: #50SS Mega
- Tensile Strength: 7,050lbs
- Working Load: 400lbs
- Pitch (P): 0.625
- Roller Width (W): 0.400
- Roller Diameter (R): 0.400
- Overall Chain Width (F): 0.970
- Link Plate Height (H): 0.591
- Link Plate Thickness (T): 0.080
- Pin Diameter (D): 0.200
- Specifications Met: ANSI Standards
