Specialty Chain > Table Top Chain > Slat Top Plastic Chain > 820 Slat Top Plastic Chain

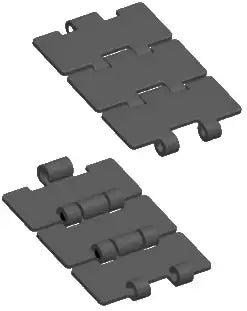

GR820 K325 Table Top Chain
Note:
Custom Cut to Length Chain Also Available
SKU: GR820-K325-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
GR820 K325 Table Top Chain Features
GR820 K325 Table Top Chain Specifications
GR820 K325 Table Top Chain is a premium quality chain that is 3.25" wide, and is black in color. The benefits of this chain is that it is manufactured using a glass reinforced polyester, this creates a chain with an extremely high resistance to wear and heat. The GR820 K325 chain that we have is manufactured to be high strength, have great performance, and extreme durability. It uses 304-grade stainless steel pins and is standardly supplied as 10ft boxes (80-Links). We can supply this chain in other colors and configurations upon request, as well as with rubber top attachments on the chain.
Besides the GR820 K325 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on GR820 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
GR820 K325 Chain Dimensions
Chain Size: GR820 K325 Pitch (P): 1.50" Backflex Radius: 3.00" Tensile Strength: 450 LBS Width (W): 3.25" Chain Material: PBT-GR Color: Black Pin Material: 304-SS Dimension (E): 0.25" Dimension (G): 1.75" Dimension (H): 0.37" Dimension (L): 0.28" Dimension (Q): 1.63" Dimension (T): 0.16" Chain Weight: 0.57 LBS/ FT
Besides the GR820 K325 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
|
|
Tooth Count | Overall Diameter |
|---|---|---|
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" | |
| 27 | 6.57" | |
| 29 | 7.05" | |
| 31 | 7.56" | |
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" |
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on GR820 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.
Email:
Chain Size: GR820 K325 Pitch (P): 1.50" Backflex Radius: 3.00" Tensile Strength: 450 LBS Width (W): 3.25" Chain Material: PBT-GR Color: Black Pin Material: 304-SS Dimension (E): 0.25" Dimension (G): 1.75" Dimension (H): 0.37" Dimension (L): 0.28" Dimension (Q): 1.63" Dimension (T): 0.16" Chain Weight: 0.57 LBS/ FT
