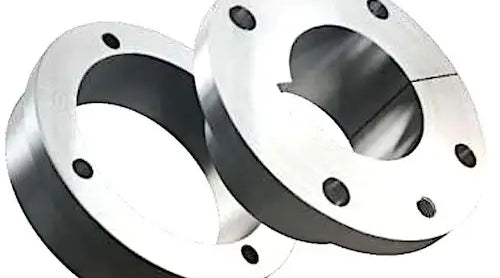

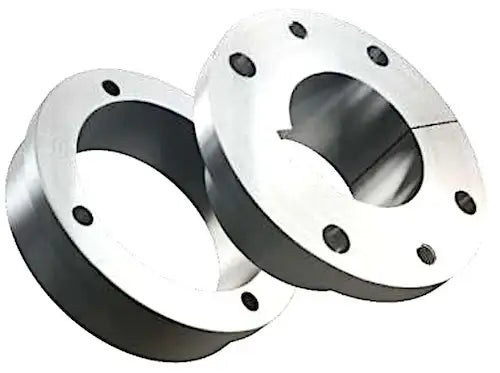

HEB35 Bushing With 60mm Bore
Note:
Custom Cut to Length Chain Also Available
SKU: HEB35-60MM-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HEB35 Bushing With 60mm Bore Features
HEB35 Bushing With 60mm Bore Specifications
This HEB35 bushing with a 60mm bore provides high compression on a shaft and is designed to go within an HE35 or HE35WH weld-on the hub. Precision made from high-quality steel, this HEB35 bushing with a 60mm bore is easily installed and removed. Additionally, this bushing directly interchanges with other brands. At USA Roller Chain, we pride ourselves on providing excellent quality HEB35 bushings with a 60mm bore and HE35 weld-on hubs. For additional information or to get a quote on our HEB35 bushing with a 60mm bore, contact our customer service team, and we will gladly assist you.
HEB35 Bushing X 60mm Dimensions
- Bushing Size: HEB35
- Bore Size: 60mm
- Flange Diameter (E): 6.625"
- Flange Width (F): 0.875"
- Total Length (G): 2.780"
- Bolt Circle (H): 5.563"
- # of Bolts: 4
- Bolt Size: 9/16"
- Maximum Bolt Torque: 680 In/ LBS
- Bushing Size: HEB35
- Bore Size: 60mm
- Flange Diameter (E): 6.625"
- Flange Width (F): 0.875"
- Total Length (G): 2.780"
- Bolt Circle (H): 5.563"
- # of Bolts: 4
- Bolt Size: 9/16"
- Maximum Bolt Torque: 680 In/ LBS
