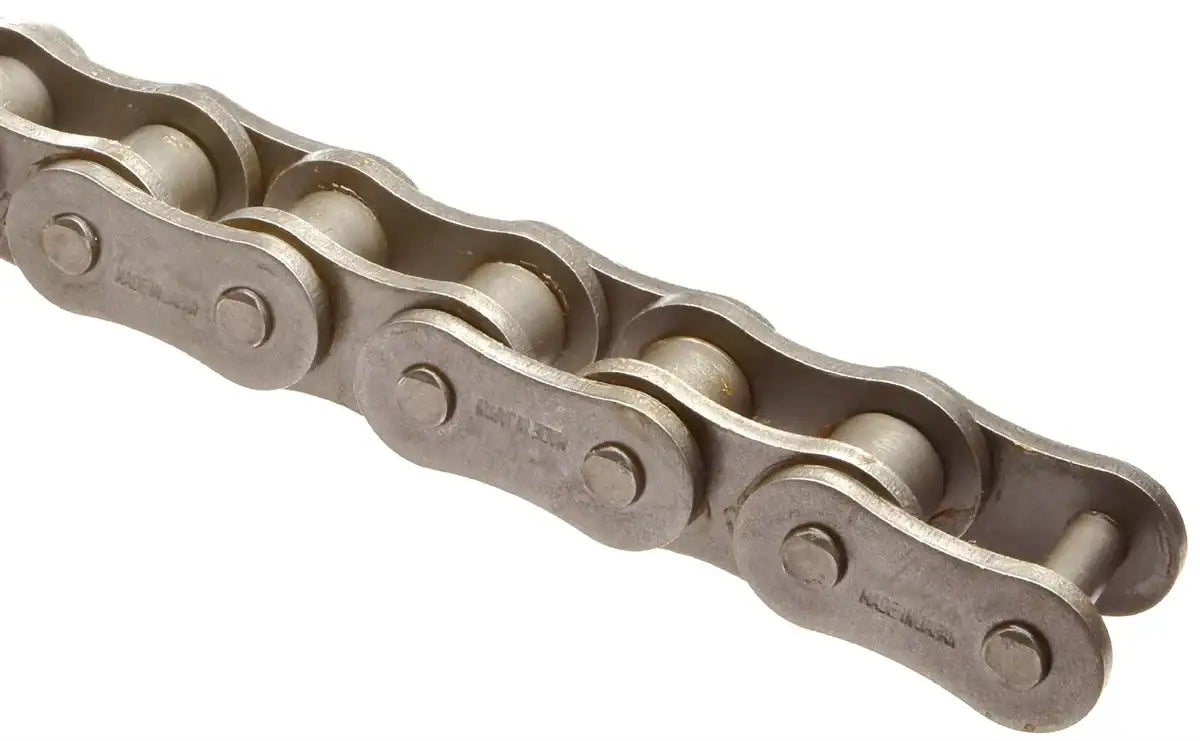

HKK #50 Roller Chain - 10ft Box

Roller Chain > Roller Chain by Size > ANSI 50 Roller Chain 5/8 Pitch

INSPIRE #50 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: INSPIRE-50-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715179217263" , "metafield_value":""}]
INSPIRE #50 Roller Chain - 10ft Box Features
INSPIRE #50 Roller Chain - 10ft Box Specifications
MAXCO INSPIRE #50 Roller Chain

INSPIRE #50 roller chain offers high strength, durability, and a long working life. INSPIRE #50 roller chain is manufactured out of high quality carbon steel that is suitable for a broad range of applications. INSPIRE Chain has set the bar for quality roller chains with offering maximum operating advantages at minimum cost. INSPIRE Roller Chain has solid bushings, solid rollers, and is manufactured with components that have been shot peened, heat treated, and hardened making the roller chain extremely durable, high strength, and have a long working life. Additionally for added strength INSPIRE roller chain has wide side plates and the chain has been totally lubricated for a prolonged working life. INSPIRE Chain has a drive efficiency rating of over 98% with no power loss through friction or slipping throughout the entire working life of the chain. For additional information or pricing and availability please contact us.

Dimensions:
INSPIRE #50 Roller Chain - 10ft Box
  • Chain Size: #50 Roller Chain
  • Tensile Strength: 7,200lbs
  • Working Load: 1,620lbs
  • Pitch (P): 0.625"
  • Roller Width (W): 0.400"
  • Roller Diameter (D): 0.375"
  • Plate Height (H): 0.579"
  • Plate Thickness (T): 0.080"
  • Pin Diameter (E): 0.156"
  • Overall Width (F): 0.802"
  • Weight: 0.67 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: #50 Roller Chain
  • Tensile Strength: 7,200lbs
  • Working Load: 1,620lbs
  • Pitch (P): 0.625"
  • Roller Width (W): 0.400"
  • Roller Diameter (R): 0.375"
  • Plate Height (H): 0.579"
  • Plate Thickness (T): 0.080"
  • Pin Diameter (D): 0.156"
  • Overall Width (F): 0.802"
  • Weight: 0.67 LBS/ FT
