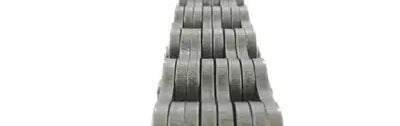

LH1644 Leaf Chain | 4X4 Chain 25.4mm Pitch - 10ft Box
Login to Request a Quote

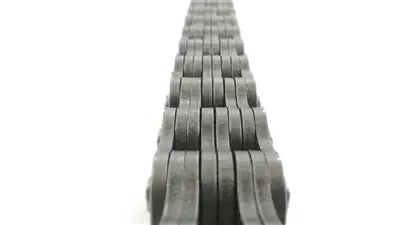

The LH1644 leaf chain stands out within ANSI and ISO dimensional standards, representing a robust 4x4 lacing leaf chain solution. Crafted for heavy-duty applications, the LH series exceeds load requirements compared to LL or AL series chains. What distinguishes our LH1644 chain is the utilization of top-tier carbon and alloy steel components, subject to specific heat treatments, precise tolerances, and factory pre-loading. This meticulous combination yields an LH1644 leaf chain that delivers exceptional performance and extended durability.
Highlighted by its inclusion of extra plates, the LH1644 chain boasts an impressive cost-to-breaking strength ratio. Moreover, this leaf chain seamlessly exchanges with counterparts from different brands and manufacturers.
For additional information or to request a quote for the LH1644 chain, feel free to contact our customer support team. We are dedicated to assisting you with your specific requirements!
LH1644 Chain Dimensions
- Chain Size: LH1644
- Lacing: 4X4
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): 3.95mm
- Pin Length (A1): 37.65mm
- Tensile Strength: 201.1 kN
- Weight: 4.76 Kg/m
- Chain Size: LH1644
- Lacing: 4X4
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): 3.95mm
- Pin Length (A1): 37.65mm
- Tensile Strength: 201.1 kN
- Weight: 4.76 Kg/m
