Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain

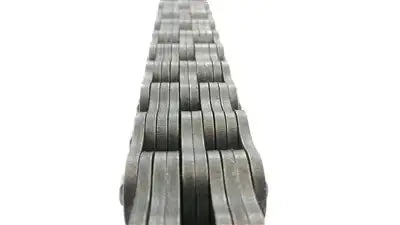

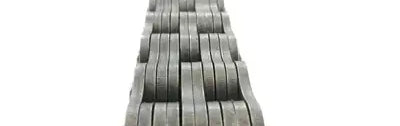

LH1646 Leaf Chain | 4X6 Chain 25.4mm Pitch - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$379.99
SKU: LH1646-LEAF-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
LH1646 Leaf Chain | 4X6 Chain 25.4mm Pitch - 10ft Box Features
LH1646 Leaf Chain | 4X6 Chain 25.4mm Pitch - 10ft Box Specifications
LH1646 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 4X6 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH1646 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH1646 leaf chain capable of exceptional performance and durability! LH1646 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH1646 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH1646 chain, contact our customer support team, and we will be happy to assist you!
LH1646 Chain Dimensions
- Chain Size: LH1646
- Lacing: 4X6
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): mm
- Pin Length (A1): 46.00mm
- Tensile Strength: 201.1 kN
- Weight: 6.05 Kg/m
- Chain Size: LH1646
- Lacing: 4X6
- Pitch (P): 25.40mm
- Pin Diameter (Dp): 9.51mm
- Plate Height (Hi): 24.00mm
- Plate Thickness (S): mm
- Pin Length (A1): 46.00mm
- Tensile Strength: 201.1 kN
- Weight: 6.05 Kg/m
