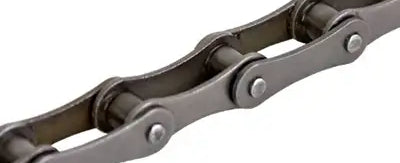

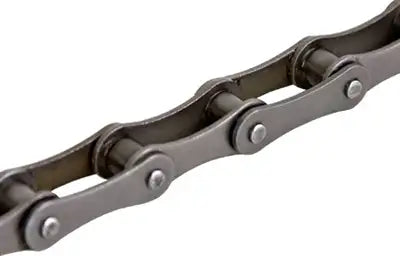

LV40 Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: LV40-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
LV40 Roller Chain - Agricultural Chain Features
LV40 Roller Chain - Agricultural Chain Specifications
LV40 roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
LV40 Chain Dimensions
- Pitch (P): 40.0mm
- Roller Diameter (D1): 12.0mm
- Width Between Inner Plates (B1): 22.0mm
- Pin Diameter (D2): 6.0mm
- Pin Length (L): 38.2mm
- Connecting Link Pin Length (LC): 41.0mm
- Inner Plate Depth (H2): 17.5mm
- Plate Thickness (T): 3.0mm
- Tensile Strength: 7,136 LBS
- Weight Per Meter: 3.37 LBS
- Pitch (P): 40.0mm
- Roller Diameter (D1): 12.0mm
- Width Between Inner Plates (B1): 22.0mm
- Pin Diameter (D2): 6.0mm
- Pin Length (L): 38.2mm
- Connecting Link Pin Length (LC): 41.0mm
- Inner Plate Depth (H2): 17.5mm
- Plate Thickness (T): 3.0mm
- Tensile Strength: 7,136 LBS
- Weight Per Meter: 3.37 LBS
