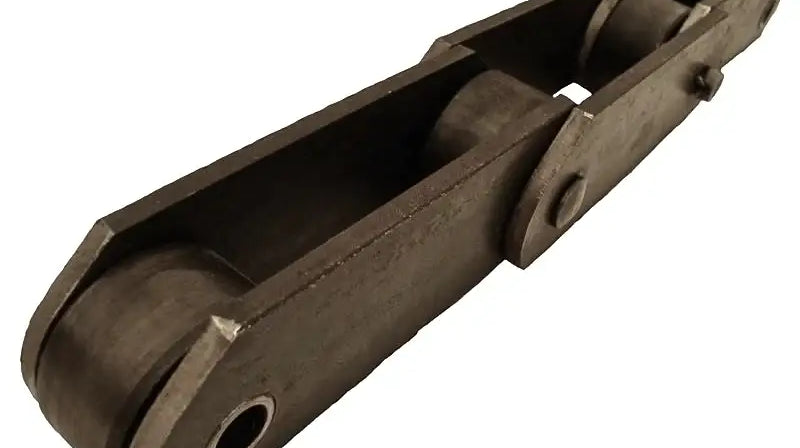

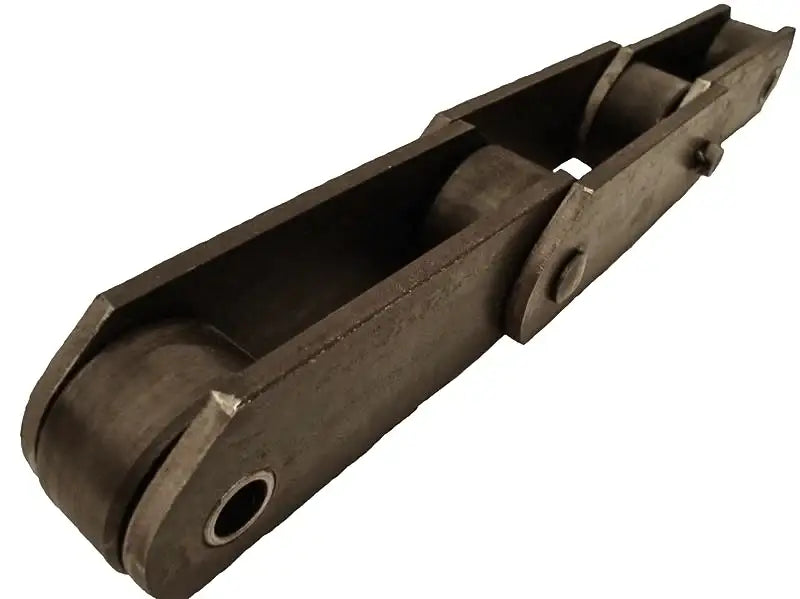

MSR1317 Conveyor Roller Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > MSR1317 Roller Chain

MSR1317 Chain

Note: Custom Cut to Length Chain Also Available
SKU: MSR1317-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715260416367" , "metafield_value":""}]
MSR1317 Chain Features
MSR1317 Chain Specifications
MSR1317 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This MSR1317 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality MSR1317 sprockets with very short lead-times. For more information or to get a quote on MSR1317 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
MSR1317 Chain
  • Chain #: MSR1317
  • Pitch: 3.000"
  • Pin Diameter (E): 0.438"
  • Overall Width Cottered (C2): 2.25"
  • Overall Width Riveted (C1): 2.16"
  • Sidebar Height (H): 1.50"
  • Roller Diameter (D): 1.50"
  • Sidebar Thickness (T): 0.19"
  • Distance Between Sidebars (W): 1.00"
  • Length Of Bushing (X): 1.38"
  • Average Ultimate Strength: 13,000 LBS
  • Maximum Recommended Working Load: 2,100 LBS
  • Links Per 10ft: 40
  • Weight Per Foot: 4.5 LBS
  • Pin Material: Case-Hardened Carbon Steel
  • Bushing Material: Case-Hardened Carbon Steel
  • Roller Material: Case-Hardened Carbon Steel
  • Sidebar Material: Carbon Steel
  • Style: 4

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain #: MSR1317
  • Pitch: 3.000"
  • Pin Diameter (E): 0.438"
  • Overall Width Cottered (C2): 2.25"
  • Overall Width Riveted (C1): 2.16"
  • Sidebar Height (H): 1.50"
  • Roller Diameter (D): 1.50"
  • Sidebar Thickness (T): 0.19"
  • Distance Between Sidebars (W): 1.00"
  • Length Of Bushing (X): 1.38"
  • Average Ultimate Strength: 13,000 LBS
  • Maximum Recommended Working Load: 2,100 LBS
  • Links Per 10ft: 40
  • Weight Per Foot: 4.5 LBS
  • Pin Material: Case-Hardened Carbon Steel
  • Bushing Material: Case-Hardened Carbon Steel
  • Roller Material: Case-Hardened Carbon Steel
  • Sidebar Material: Carbon Steel
  • Style: 4
