Power Transmission > Gears and Gear Racks > Metric Spur Gear Rack
M1X15X500 Gear Rack | 500mm Metric Gear Rack
Note:
Custom Cut to Length Chain Also Available
SKU: N-7842-GE-M1X500
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
M1X15X500 Gear Rack | 500mm Metric Gear Rack Features
M1X15X500 Gear Rack | 500mm Metric Gear Rack Specifications

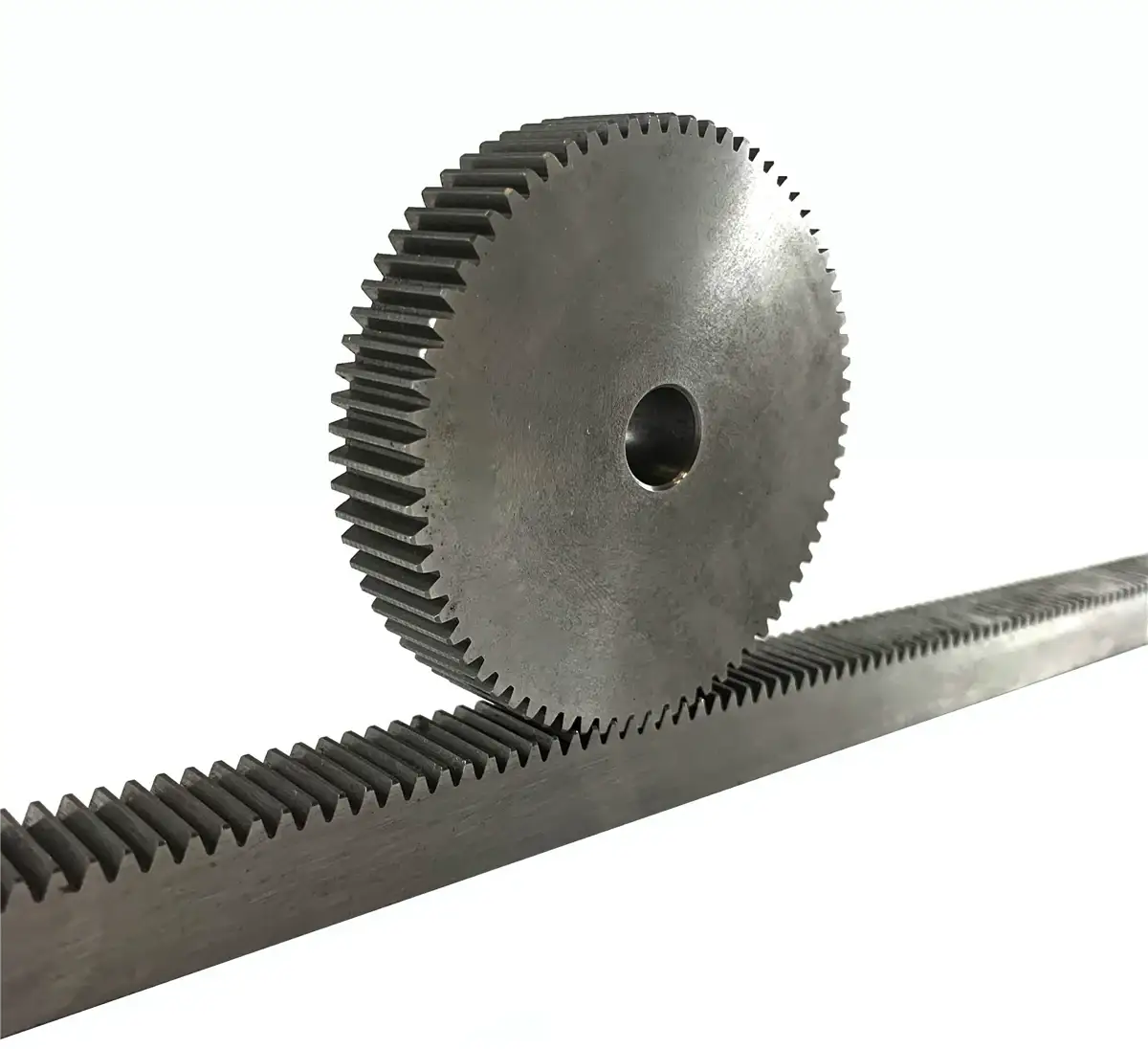

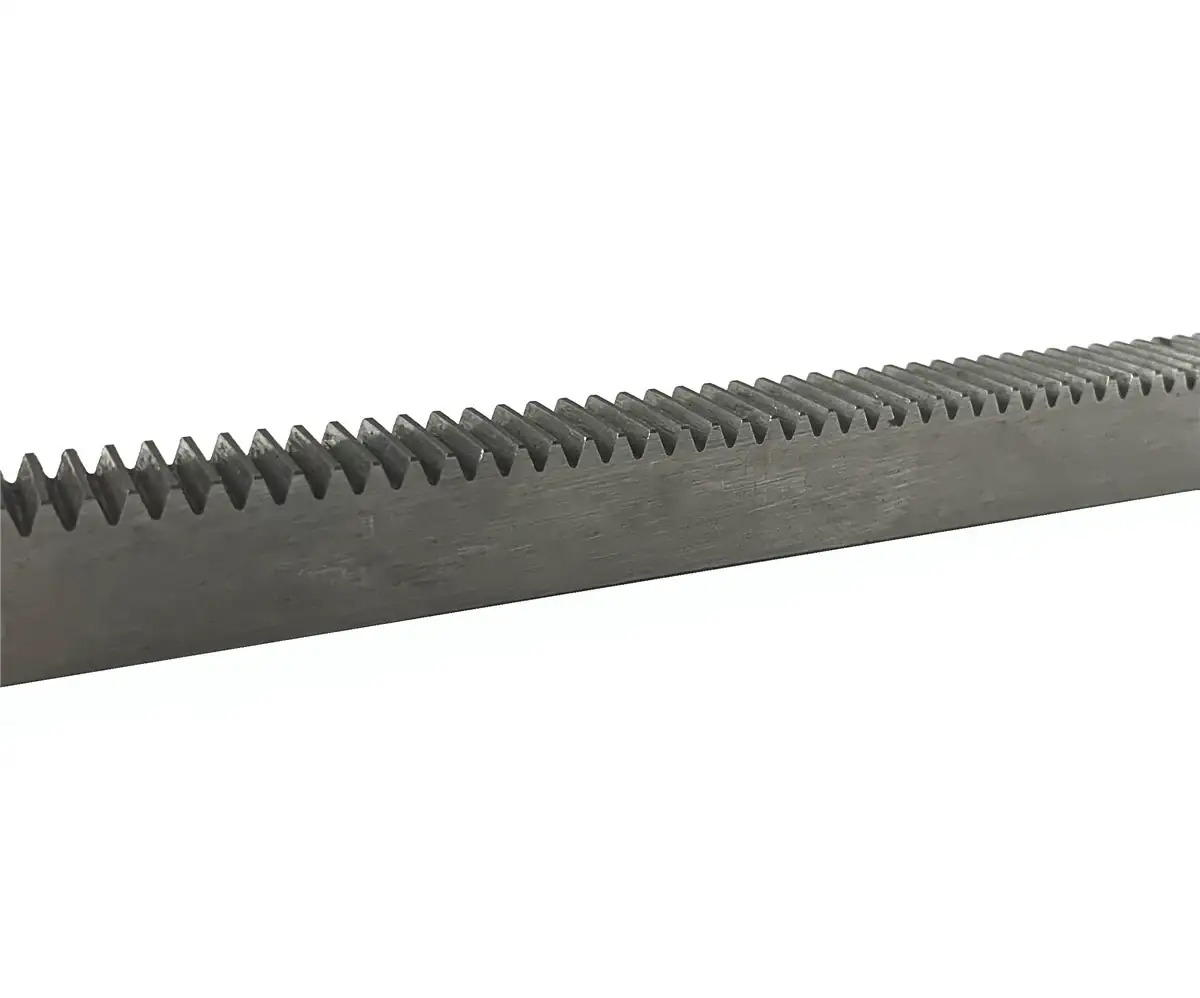

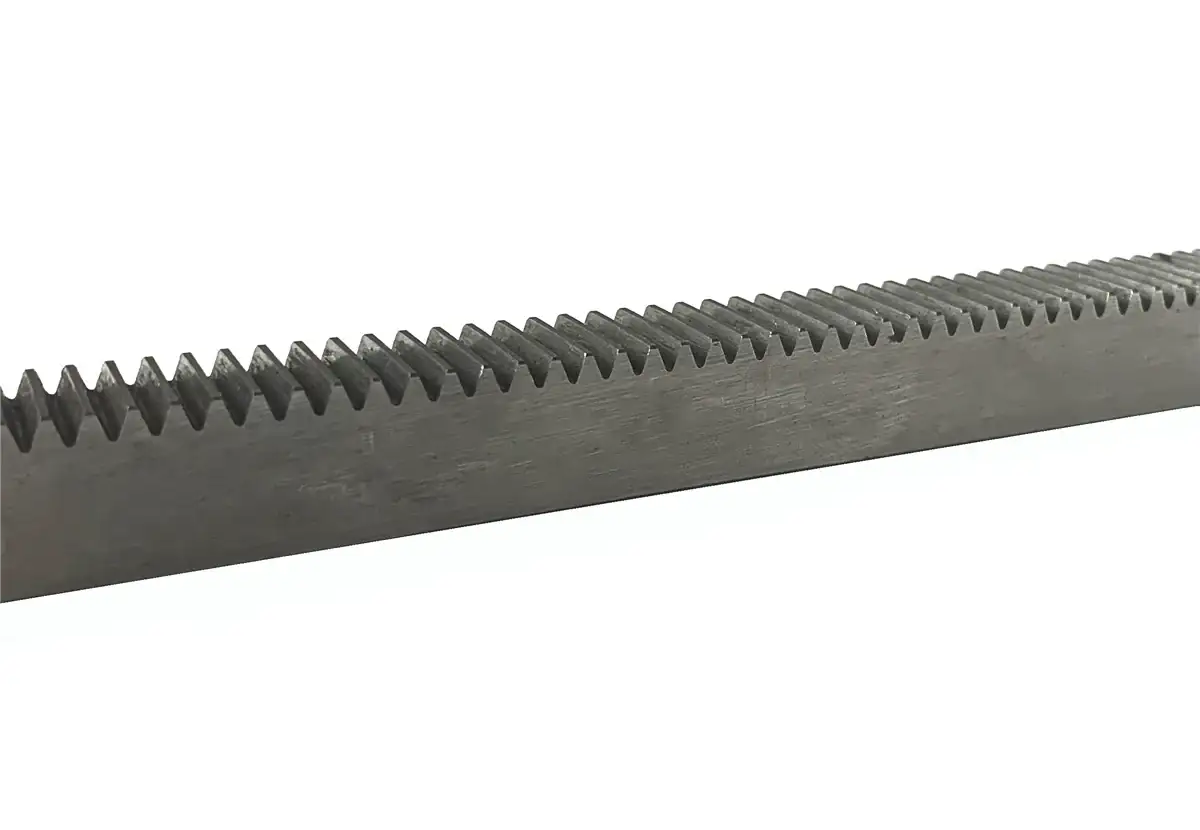

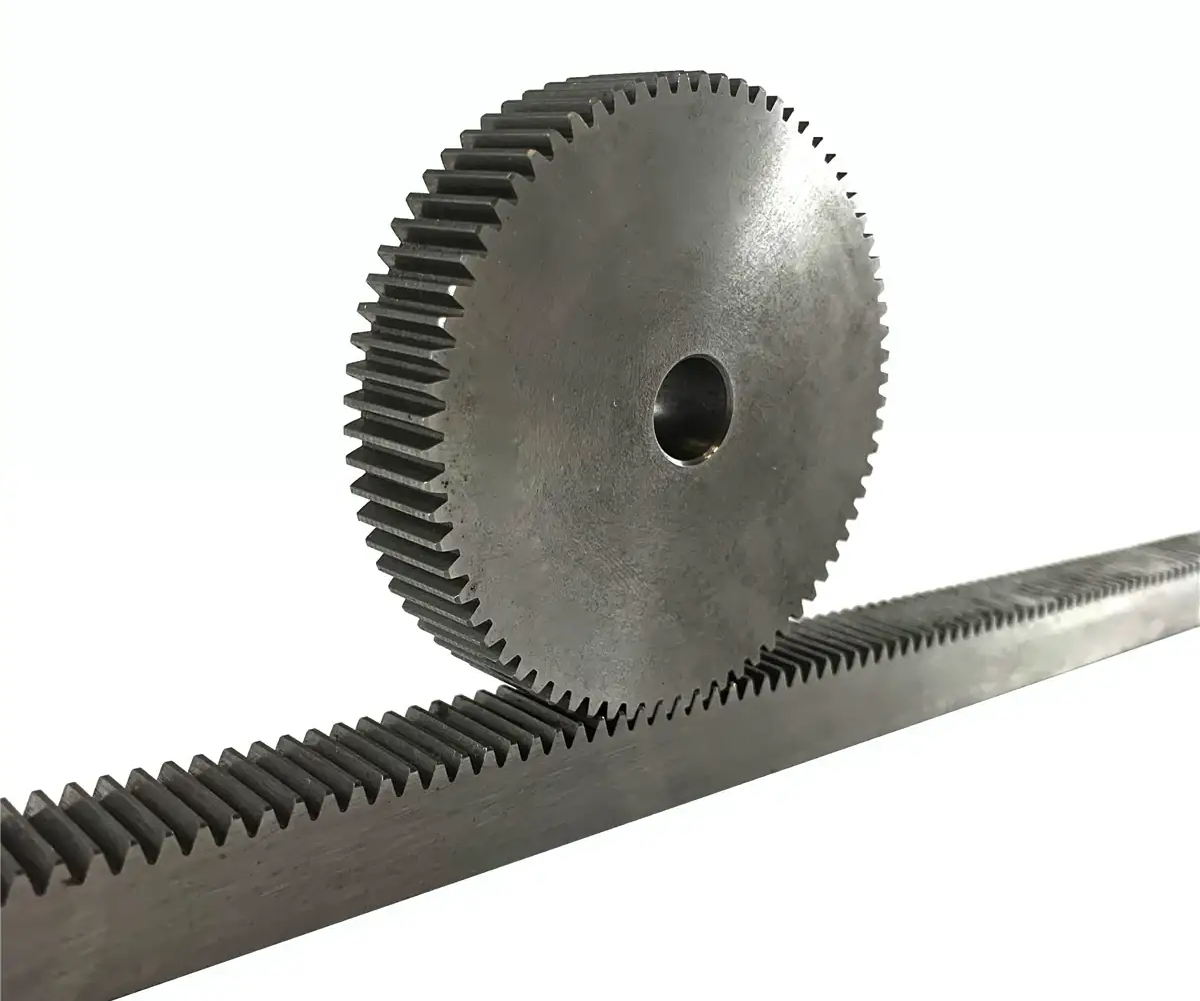

M1X15X500 gear rack is manufactured from premium C1045 steel to metric Module 1 dimensions and is 500mm in length. Our precision metric gear racks are designed to function smoother and longer than the other brands out there. For more information or to get a quote for M1X500 metric gear rack please contact us and we will be happy to assist you.
M1X15X500 Gear Rack Dimensions
- Part #: M1X500
- Dimension (hp): 14mm
- Dimension (he X S): 15mm X 15mm
- Weight: 0.82 kG
- Pitch: 3.1416mm
- Dimension (S): 0.5mm
- Amount of Teeth: 159
- Dimension (Lr): 499.51mm
- Part #: M1X500
- Dimension (hp): 14mm
- Dimension (he X S): 15mm X 15mm
- Weight: 0.82 kG
- Pitch: 3.1416mm
- Dimension (S): 0.5mm
- Amount of Teeth: 159
- Dimension (Lr): 499.51mm
