Specialty Chain > Engineering Class Chains > More Engineer Class Chains > Double Flex Chain
NM3500 Chain - Plastic 3500 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: NM3500-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
NM3500 Chain - Plastic 3500 Chain Features
NM3500 Chain - Plastic 3500 Chain Specifications

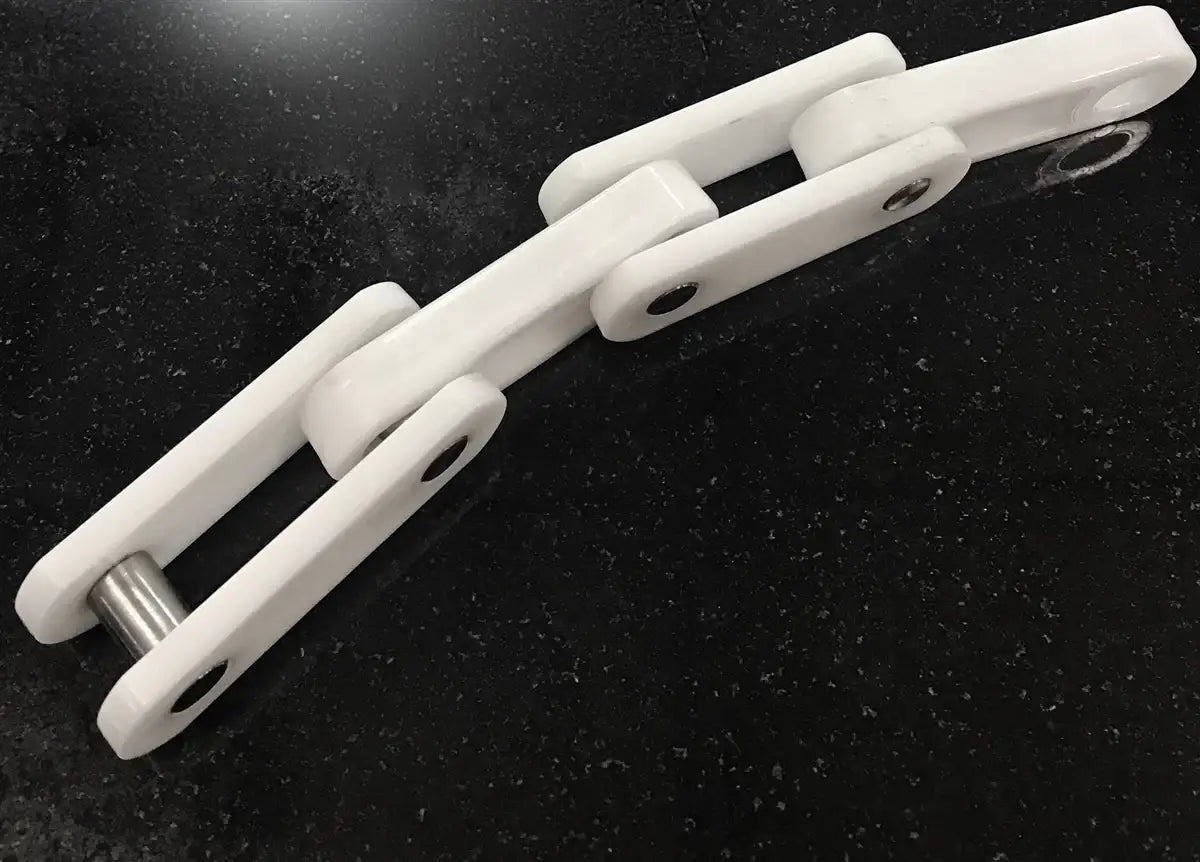

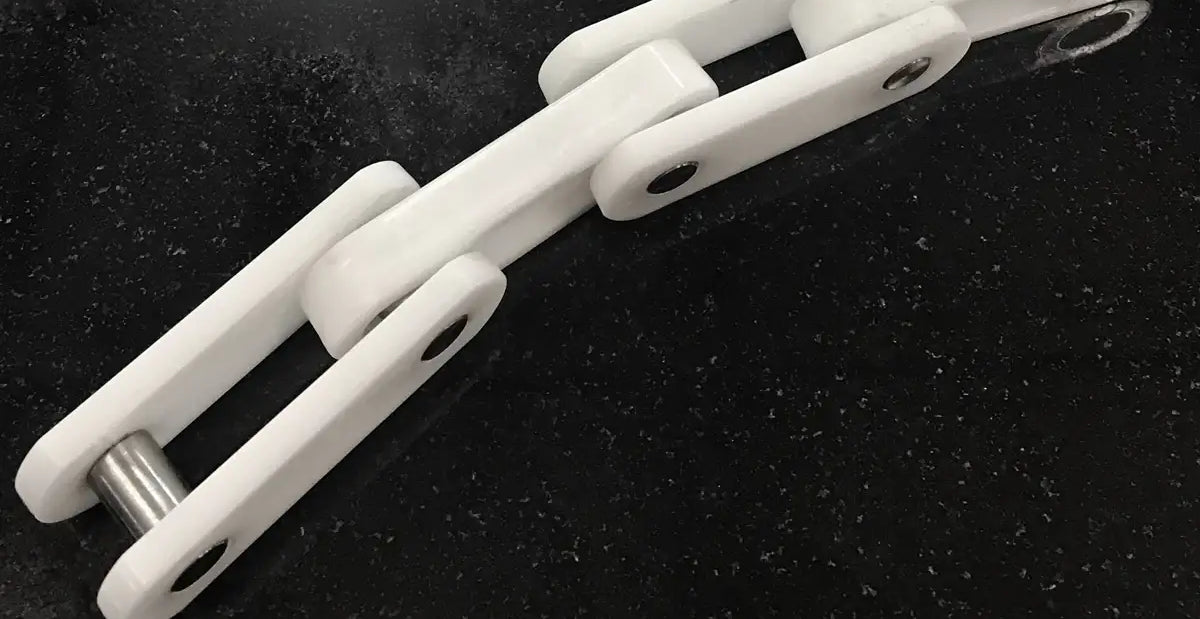

NM3500 Chain is manufactured using high-quality Delrin 100P for the sidebars and block link, it is commonly referred to as a plastic double flex chain or dairy case chain. Delrin 100P plastic is used because it has a high viscosity acetal homopolymer that provides maximum toughness in the product line without modification. Additionally, it has improved processing thermal stability. The pins are made with high-quality 304-Grade stainless steel for improved strength and long-term operation. Overall NM3500 chain is extremely versatile, durable, and has good chemical and corrosion resistant properties. It is typically supplied as 10ft coils. For additional information or to get a quote please contact us and we'll be happy to assist you.
NM3500 Chain Dimensions
- Chain Size: NM3500
- Pitch: 2.500" X 3.000"
- Chain Material: Delrin 100P
- Pin Diameter: 0.567"
- Pin Material: 304-Grade Stainless Steel
- Overall Width: 1.500"
- Sidebar Thickness: 0.312"
- Sidebar Height: 1.250"
- Tensile Strength: 2,700 LBS
- Weight: 0.81 LBS/ FT
- Chain Size: NM3500
- Pitch: 2.500" X 3.000"
- Chain Material: Delrin 100P
- Pin Diameter: 0.567"
- Pin Material: 304-Grade Stainless Steel
- Overall Width: 1.500"
- Sidebar Thickness: 0.312"
- Sidebar Height: 1.250"
- Tensile Strength: 2,700 LBS
- Weight: 0.81 LBS/ FT
