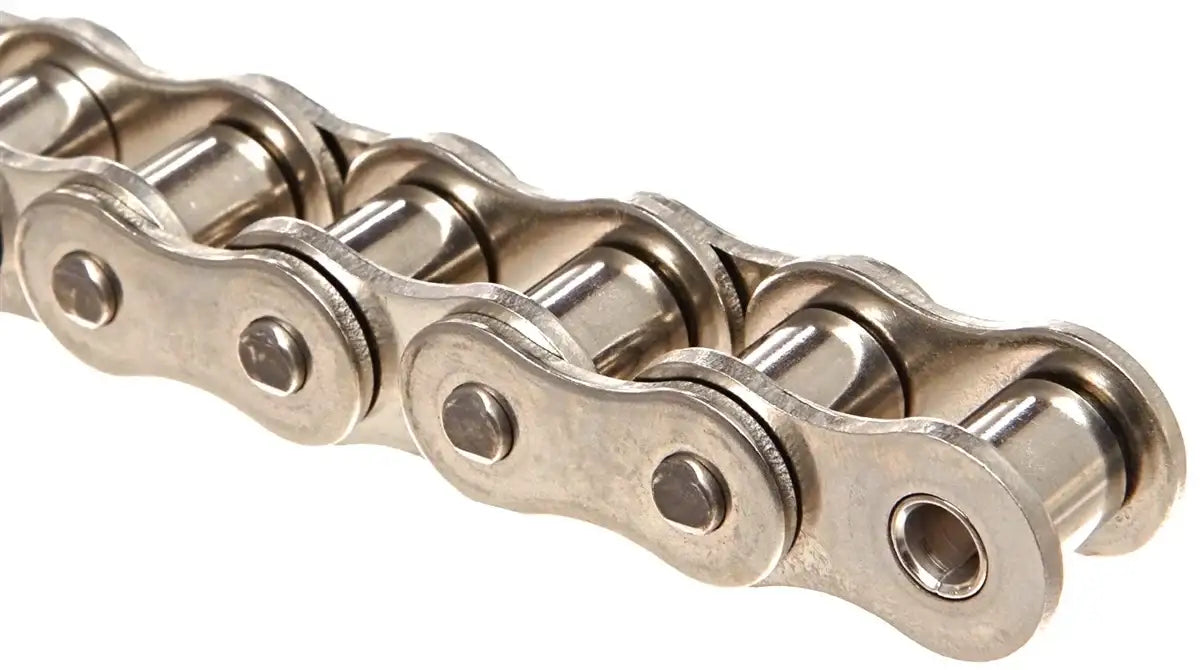

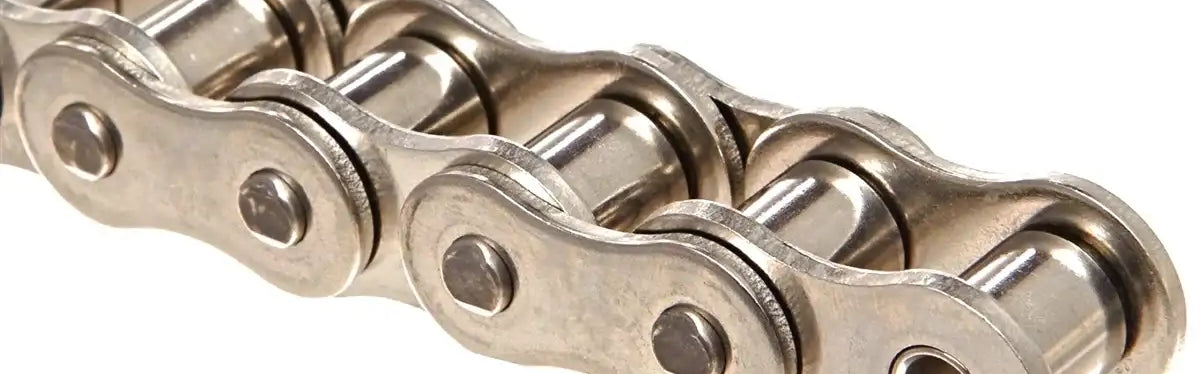

Premium #25 Nickel Plated Chain

Roller Chain > Roller Chain by Size > #25 Roller Chain

Premier Series #25 Nickel Plated Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$139.99
SKU: P25-NICKEL-PLATED-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715302916463" , "metafield_value":""}]
Premier Series #25 Nickel Plated Chain - 10ft Box Features
Premier Series #25 Nickel Plated Chain - 10ft Box Specifications
This premium #25 nickel plated chain offers extremely high strength, a very long working life, and the best performance. The Premier Series nickel plated roller chain takes quality to a whole new level with extreme precision ANSI components, a very high quality carbon steel, and a shiny premium nickel plating finish to prevent corrosion. Each component in this roller chain has been heat-treated, shot peened, and pre stretched to provide the ultimate strength and performance that this chain has to offer. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain won't hold up. Premier Series #25 nickel plated roller chain features the same high strength as the normal Premier Series #25 roller chain does. #25 nickel plated roller chain is commonly supplied as 10ft boxes including one connecting link per box. However, we can supply the chain in larger length reels and even custom lengths per request. Additionally we offer a full line of nickel plated attachments and high quality ANSI #25 sprockets.

Premium #25 Nickel Plated Chain Dimensions


Premier Series #25 Nickel Plated Chain - 10ft Box
  • Part Number: #25NP
  • Tensile Strength: 990 LBS
  • Pitch (P): 0.250"
  • Roller Width (W): 0.125"
  • Roller Diameter (D): 0.130"
  • Chain Overall Width (F): 0.310"
  • Overall Width Of Connecting Link: 0.340"
  • Link Plate Height (H): 0.228"
  • Link Plate Thickness (T): 0.029"
  • Pin Diameter (E): 0.091"
  • Weight Per Foot: 0.090 LBS

  • Part Number: #25NP
  • Tensile Strength: 990 LBS
  • Pitch (P): 0.250"
  • Roller Width (W): 0.125"
  • Roller Diameter (D): 0.130"
  • Chain Overall Width (F): 0.310"
  • Overall Width Of Connecting Link: 0.340"
  • Link Plate Height (H): 0.228"
  • Link Plate Thickness (T): 0.029"
  • Pin Diameter (E): 0.091"
  • Weight Per Foot: 0.090 LBS
