Specialty Chain > Engineering Class Chains > 81X Steel Bushed Roller Chains > Precision 81X Chain For Conveying

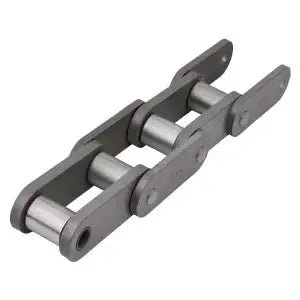

Premium 81X Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
$129.99
SKU: PII-81X-Chain
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium 81X Chain 10ft Box Features
Premium 81X Chain 10ft Box Specifications
Our remium 81X chain is a high-strength precision roller chain that is manufactured to specific quality specifications. What really sets this 81X roller chain apart from other brands is the fact that it features solid bushings, solid rollers, and quad staked rivets. Manufacturing a roller chain with solid bushings creates many benefits, the most important ones are; major performance gain, extended working life, more durable, and less internal friction. Adding solid rollers to the chain ensures a sturdy and consistent contact between the chain and sprocket teeth, this increase the working life of the chain because it prevents deformation of the chain and creates a better contact between the chain and sprocket. Having quad-staked rivets give the chain an added advantage in shock loaded applications and any side load the chain may experience during operation. This chain really sets the bar for premium 81X series roller chains and is offered at an extremely competitive price. Fore more information or a large quantity quote please contact us and one of our highly trained customer service representatives will be happy to assist you.
Dimensions:
Dimensions:
- Chain #: 81X
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.156"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 1.875"
- Overall Connecting Link Width: 2.250"
- Tensile Strength: 25,000 LBS
- Weight Per Foot: 2.5 LBS
- Chain #: 81X
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.156"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 1.875"
- Overall Connecting Link Width: 2.250"
- Tensile Strength: 25,000 LBS
- Weight Per Foot: 2.5 LBS
