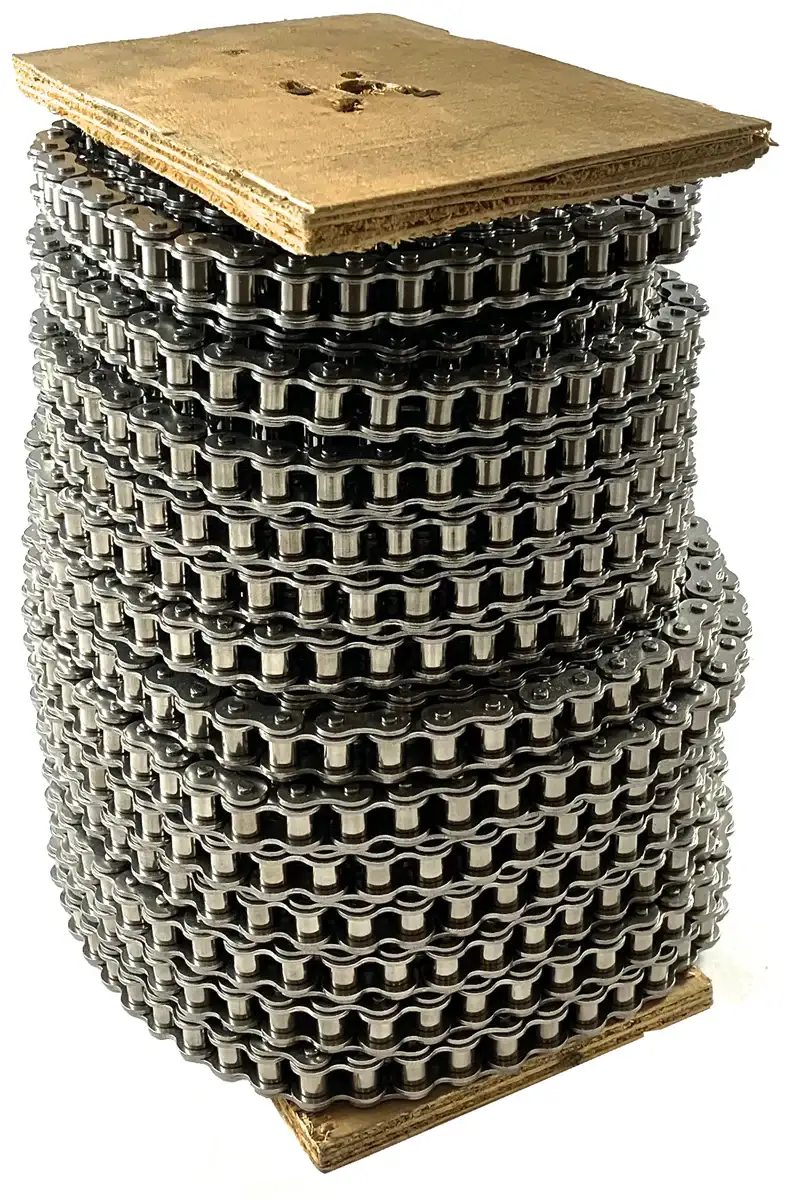

Premier Series #35SS Stainless Steel Roller Chain - 50ft Reel
Login to Request a Quote
Premier Series #35 stainless steel roller chain on a 50ft reel is the top of the food chain when it comes to an anti-corrosive stainless roller chain. Being manufactured with the most precise components, best quality 304-grade stainless material and utilizing proprietary manufacturing processes this chain is made for durability and performance in mind. The Premier Series 35 stainless steel chain is made in accordance with ANSI B29.1 standards so it interchanges with other brands and runs on standard stainless steel sprockets. Being supplied on a 50ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For additional information please contact us and we will be happy to assist!
35SS Chain Dimensions
- Size: 35SS
- Pitch (P): 0.375"
- Roller Diameter (D1): 0.200"
- Width Between Inner Plates (B1): 0.188"
- Pin Diameter (D2): 0.141"
- Pin Length (LR): 0.52"
- Pin Length (LC): 0.64"
- Inner Plate Height (H2): 0.35"
- Plate Thickness (T): 0.050"
- Tensile Strength: 1,400 LBS
- Weight: 0.22 LBS/ FT
- Size: 35SS
- Pitch (P): 0.375"
- Roller Diameter (D1): 0.200"
- Width Between Inner Plates (B1): 0.188"
- Pin Diameter (D2): 0.141"
- Pin Length (LR): 0.52"
- Pin Length (LC): 0.64"
- Inner Plate Height (H2): 0.35"
- Plate Thickness (T): 0.050"
- Tensile Strength: 1,400 LBS
- Weight: 0.22 LBS/ FT
