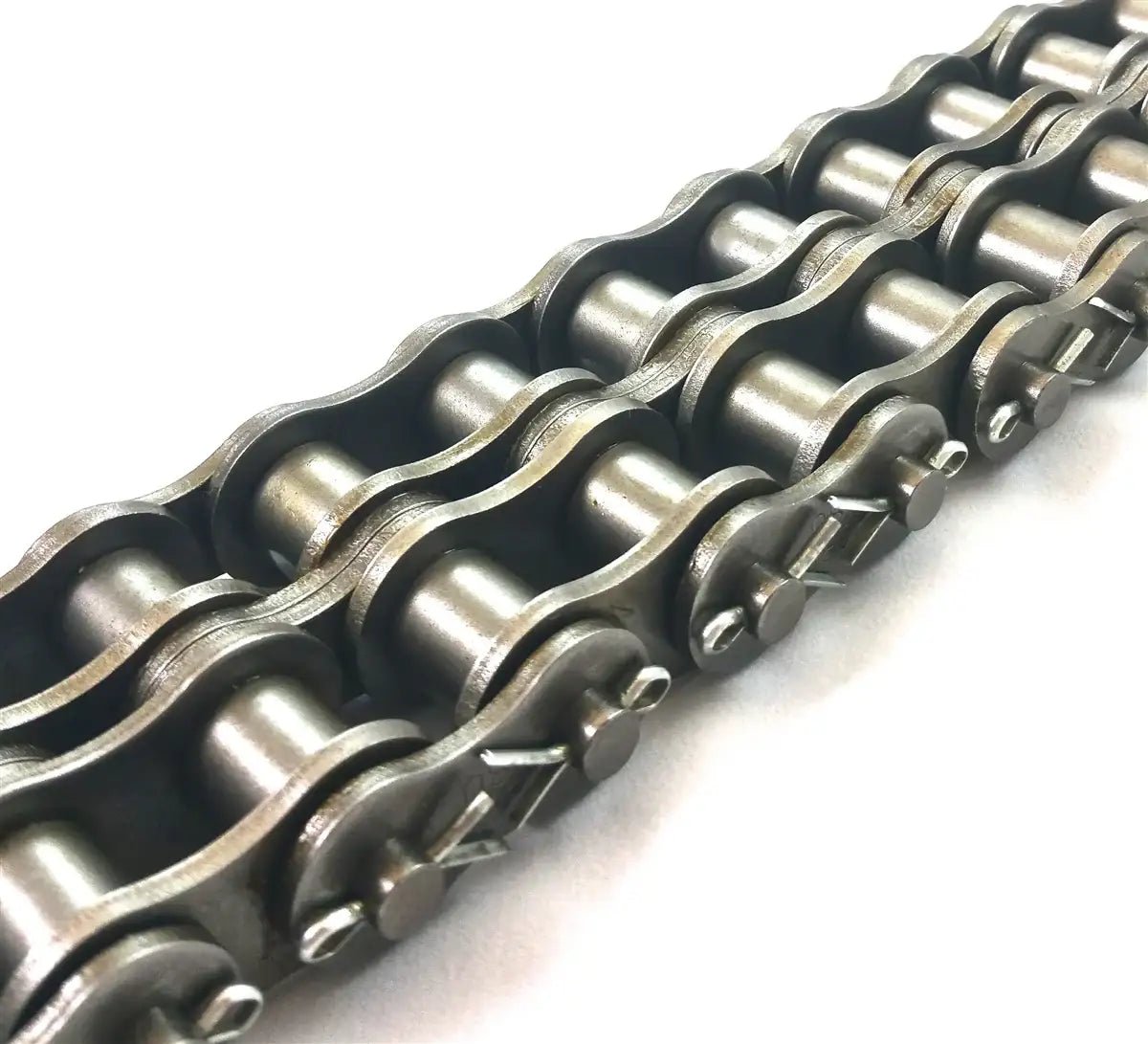

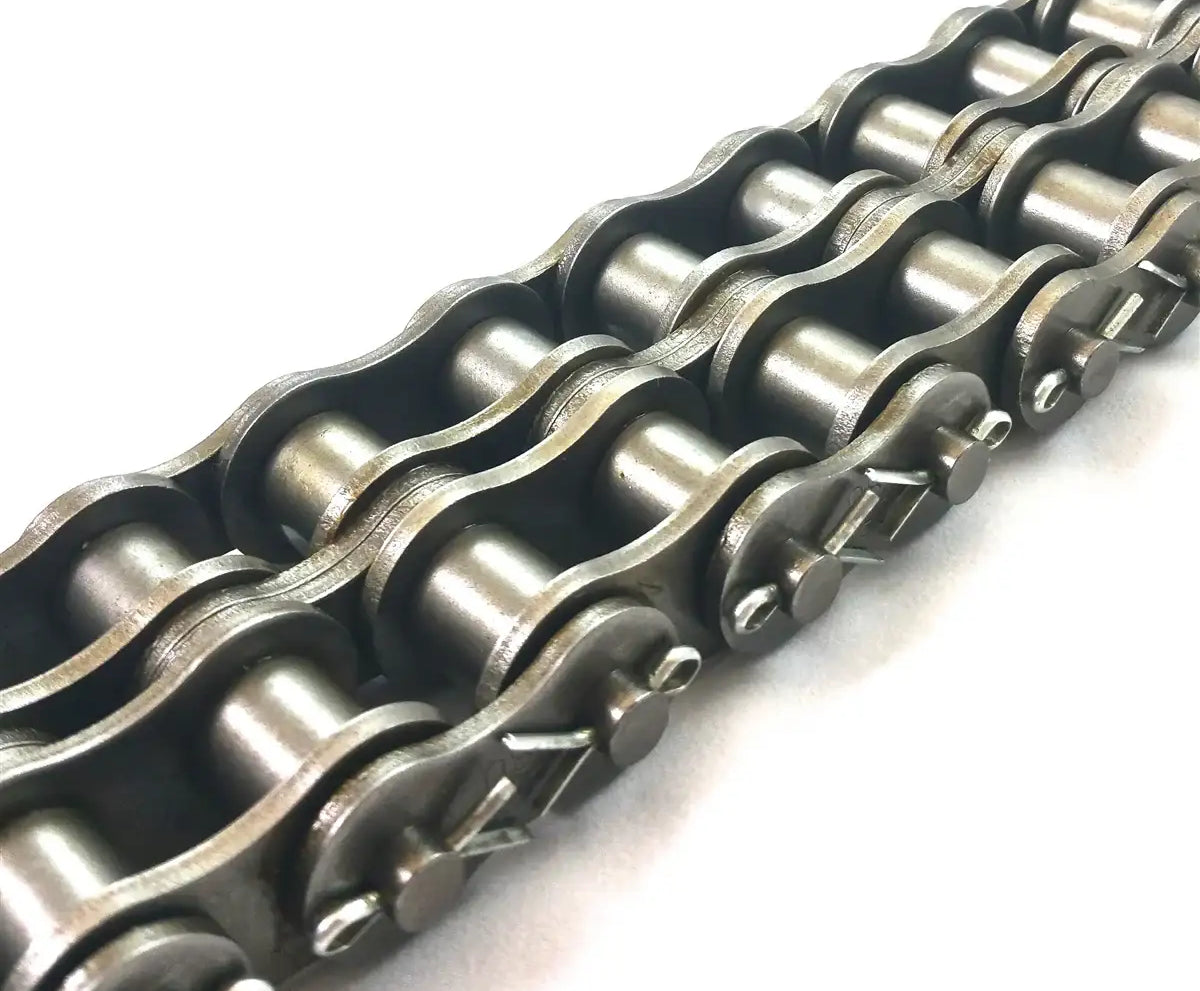

Premier Series #140-2 Cottered Roller Chain - 10ft Box

This #140-2 Double Strand Cottered Roller chain is a premium quality, high strength, and extremely durable roller chain. Cottered style roller chain uses cotter pins instead of rivets; the benefit of this is that the chain is easier to take apart because there is not the hassle of cutting the rivet pins. Premier Series #140-2 double strand cottered roller chain supplies a high tensile strength of 96,800lbs, and a working load 15,334lbs. One of the most important features that make this chain last longer than others is that it features fully heat-treated solid bushings, which creates a high strength and long lasting precision bushing. It also features heat-treated, wide couture side plates that have been shot peened, this increases working load and the overall performance of the roller chain. Premier Series #140-2 double strand cottered roller chain also features heat-treated, hardened pins. This increases the shock load rating, tensile strength, and overall durability of the roller chain. Another important feature of this roller chain is that it has heat-treated solid rollers, which increases the overall performance of the chain and the working life. Premier Series roller chains are engineered to be a high strength and durable roller chain with great performance and a long working life. This roller chain is commonly supplied, as 10ft boxes including one connecting link per box, but alternate lengths are available upon request. We offer additional connecting links and offset links for this chain, which having a few of these on-hand can keep you out of a down. We also offer a full line of high quality sprockets and attachments for this chain. For additional information on the Premier Series #140-2 Double Strand Cottered Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

Premier Series #140-2 Cottered Roller Chain Dimensions

• Chain Size: #140-2 Cottered
• Tensile Strength: 96,800lbs
• Pitch (P): 1.750"
• Roller Width (W): 1.000"
• Roller Diameter (D): 1.000"
• Link Plate Height (H): 1.663"
• Link Plate Thickness (T): 0.219"
• Pin Diameter (E): 0.500"
• Specifications Met: ANSI Standards
