Premium #50 Hollow Pin Roller Chain

Roller Chain > Roller Chain by Size > ANSI 50 Roller Chain 5/8 Pitch

Premium #50 Hollow Pin Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$249.99
SKU: PREMIUM-50HP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715327295855" , "metafield_value":""}]
Premium #50 Hollow Pin Roller Chain - 10ft Box Features
Premium #50 Hollow Pin Roller Chain - 10ft Box Specifications

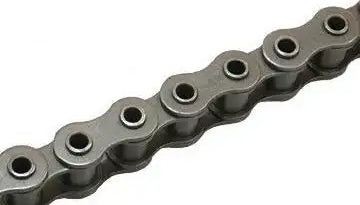

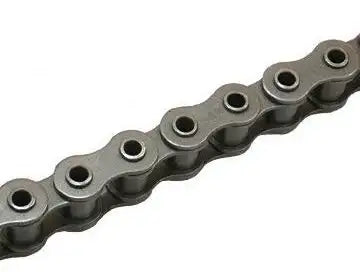

#50 Hollow Pin Roller Chain

Premium #50 hollow pin roller chain is supplied as 10ft boxes including one connecting link, but USA Roller Chain and Sprockets also offers this chain on 50ft reels, 100ft reels, and other lengths per request. This #50 hollow pin roller chain offers a high tensile strength of 4,400lbs and a rated working load of 704lbs. This hollow pin roller chain exceeds in strength, working life, performance, and durability due to the high quality carbon steel components that this chain has been constructed with, which have each been heat-treated and shot peened. #50HP hollow pin roller chain has a 0.625" pitch along with a 0.202" Inner Hole Diameter. This hollow pin roller chain fully meets all ANSI standards and has been fully heat-treated and shot peened to increase the strength, durability, and overall fatigue of this hollow pin roller chain. Hollow pin roller chains are commonly found in; bakery ovens, conveyors, food processing, packaging, and many more applications! For more information or custom lengths of #50 hollow pin roller chain please contact us.

Dimensions:
Premium #50 Hollow Pin Roller Chain - 10ft Box
  • Size: #50HP Hollow Pin
  • Pitch (P): 0.625"
  • Roller Width (W):0.375"
  • Roller Diameter (R): 0.400"
  • Hollow Pin Outside Diameter (D): 0.283"
  • Hollow Pin Inside Diameter (d): 0.202"
  • Hollow Pin Length: 0.854"
  • Overall Chain Width (F): 0.854"
  • Overall Connecting Link Width: 0.906"
  • Link Plate Height (H): 0.591"
  • Link Plate Thickness (T): 0.079"
  • Tensile Strength: 4,400lbs
  • Working Load: 704lbs
  • Weight Per Foot: 0.58lbs

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Size: #50HP Hollow Pin
  • Pitch (P): 0.625"
  • Roller Width (W):0.375"
  • Roller Diameter (R): 0.400"
  • Hollow Pin Outside Diameter (D): 0.283"
  • Hollow Pin Inside Diameter (d): 0.202"
  • Hollow Pin Length: 0.854"
  • Overall Chain Width (F): 0.854"
  • Overall Connecting Link Width: 0.906"
  • Link Plate Height (H): 0.591"
  • Link Plate Thickness (T): 0.079"
  • Tensile Strength: 4,400lbs
  • Working Load: 704lbs
  • Weight Per Foot: 0.58lbs
