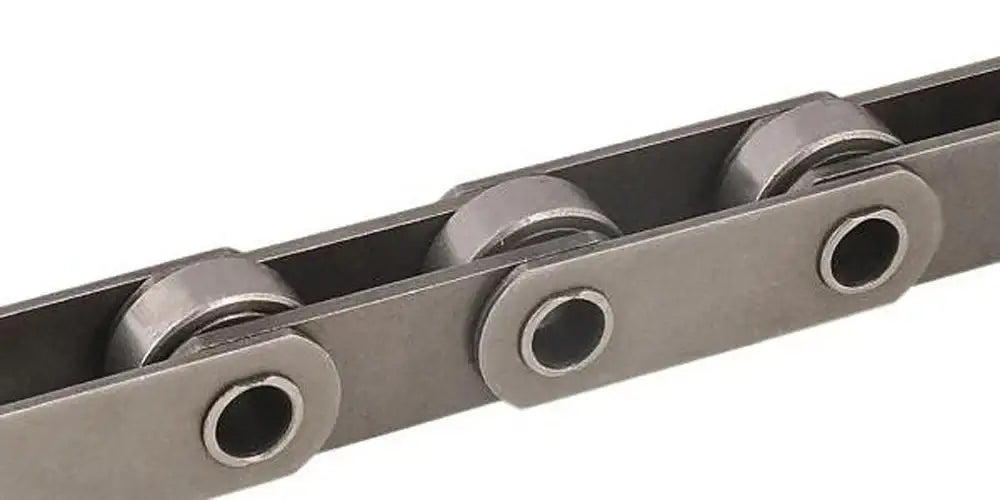

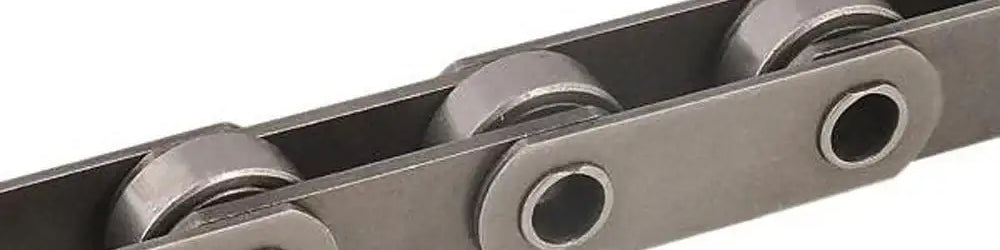

Premium C2042 Hollow Pin Roller Chain

Roller Chain > More Roller Chains > Hollow Pin Roller Chain > C2042 Hollow Pin Roller Chain

Premium C2042 Hollow Pin Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: PREMIUM-C2042HP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715331686767" , "metafield_value":""}]
Premium C2042 Hollow Pin Roller Chain - 10ft Box Features
Premium C2042 Hollow Pin Roller Chain - 10ft Box Specifications

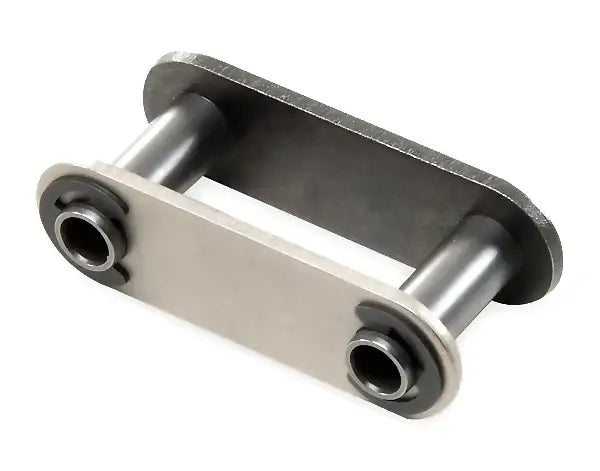

Premium C2042 hollow pin roller chain with oversized rollers is supplied as 10ft boxes including one connecting link, but USA Roller Chain and Sprockets also offers this chain on 50ft reels, 100ft reels, and other lengths per request. C2042HP Hollow Pin Roller chain is a premium double pitch, conveyor series roller chain with oversized rollers. This C2042 hollow pin roller chain offers a high tensile strength of 2,420lbs and a rated working load of 396lbs. This hollow pin roller chain exceeds in strength, working life, performance, and durability due to the high quality carbon steel components that this chain has been constructed with which have each been heat-treated and shot peened. C2042HP hollow pin roller chain has a 1" pitch along with a 0.157" Inner Hole Diameter. This hollow pin roller chain fully meets all ANSI standards and has been fully heat-treated and shot peened to increase the strength, durability, and overall fatigue of this hollow pin roller chain. Hollow pin roller chains are commonly found in; bakery ovens, conveyors, food processing, packaging, and many more applications! For more information or custom lengths of C2042 hollow pin roller chain please contact us.

Dimensions:
Premium C2042 Hollow Pin Roller Chain - 10ft Box
  • Size: C2042HP Hollow Pin
  • Pitch (P): 1.000"
  • Roller Width (W): 0.313"
  • Roller Diameter (R): 0.625"
  • Hollow Pin Outside Diameter (D): 0.221"
  • Hollow Pin Inside Diameter (d): 0.157"
  • Hollow Pin Length: 0.689"
  • Overall Chain Width (F): 0.689"
  • Overall Connecting Link Width: 0.706"
  • Link Plate Height (H): 0.461"
  • Link Plate Thickness (T): 0.059"
  • Tensile Strength: 2,420lbs
  • Working Load: 396lbs
  • Weight Per Foot: 0.55lbs

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Size: C2042HP Hollow Pin
  • Pitch (P): 1.000"
  • Roller Width (W): 0.313"
  • Roller Diameter (R): 0.625"
  • Hollow Pin Outside Diameter (D): 0.221"
  • Hollow Pin Inside Diameter (d): 0.157"
  • Hollow Pin Length: 0.689"
  • Overall Chain Width (F): 0.689"
  • Overall Connecting Link Width: 0.706"
  • Link Plate Height (H): 0.461"
  • Link Plate Thickness (T): 0.059"
  • Tensile Strength: 2,420lbs
  • Working Load: 396lbs
  • Weight Per Foot: 0.55lbs
