Hub City PT7315S-15 Reducer
Note:
Custom Cut to Length Chain Also Available
SKU: PT7315S-15-REDUCER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Hub City PT7315S-15 Reducer Features
Hub City PT7315S-15 Reducer Specifications

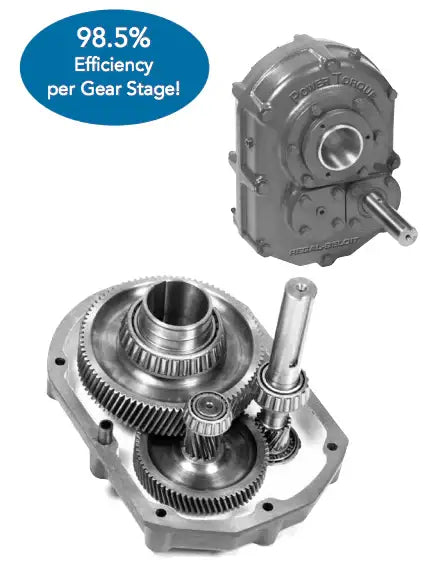

Hub City PT7315S-15 reducer is a high quality 15:1 ratio gearbox with rock solid dependability. What makes the Hub City Power Torque reducer so good is the universal design, high strength ductile housing, precision ground AGMA class 11 gearing, and immediate availability. Due to the universal design this reducer interchanges with the popular TXT reducers as well as other brands. If you are replacing an old gearbox that is not Hub City brand or TXT style please contract us to confirm usability. Besides the PT7315S-15 reducer we also have a full line of high quality accessories like bushing kits, backstop assemblies, motor mounts, screw conveyor adapters, screw conveyor drive shafts, and belt guards. Please note that torque-arm assemblies are included with each unit.
For mechanical ratings, service factors, or additional information or to get a quote please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
PT7315S-15 Dimensions
Part #: PT7315S-15 Ratio: 15:1 Box Size: 7 Dimension (L): 18.75" Dimension (M): 25.94" Dimension (N): 12.85" Dimension (F): 2.4375" Key: 0.625" X 0.312" X 4.75" Maximum Dimension (B): 3-15/16" Dimension (C): 2.06" Dimension (E): 7.25" Dimension (G): 3.75" Dimension (W): 2.00" Dimension (U): 2.75" Dimension (X): 6.38" Dimension (V): 4.69" Dimension (Q): 6.35" Dimension (Y): 2.50" Dimension (H): 7.75" Dimension (A1): 5.11" Dimension (A2): 9.74" Dimension (A3): 8.30" Dimension (h): 9.38" Minimum Dimension (R): 29.44" Maximum Dimension (R): 35.44" Dimension (P): 0.63" Dimension (T): 4.75" Gear Box Weight: 487 LBS
For mechanical ratings, service factors, or additional information or to get a quote please contact us and we will be happy to assist you.
Email:
Part #: PT7315S-15 Ratio: 15:1 Box Size: 7 Dimension (L): 18.75" Dimension (M): 25.94" Dimension (N): 12.85" Dimension (F): 2.4375" Key: 0.625" X 0.312" X 4.75" Maximum Dimension (B): 3-15/16" Dimension (C): 2.06" Dimension (E): 7.25" Dimension (G): 3.75" Dimension (W): 2.00" Dimension (U): 2.75" Dimension (X): 6.38" Dimension (V): 4.69" Dimension (Q): 6.35" Dimension (Y): 2.50" Dimension (H): 7.75" Dimension (A1): 5.11" Dimension (A2): 9.74" Dimension (A3): 8.30" Dimension (h): 9.38" Minimum Dimension (R): 29.44" Maximum Dimension (R): 35.44" Dimension (P): 0.63" Dimension (T): 4.75" Gear Box Weight: 487 LBS
