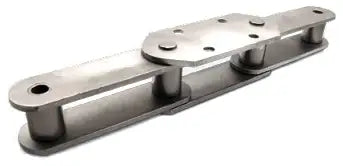

R36250 Chain - Conveyor Chain
Note:
Custom Cut to Length Chain Also Available
SKU: R36250-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
R36250 Chain - Conveyor Chain Features
R36250 Chain - Conveyor Chain Specifications
R36250 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R36250 chain.
R36250 Chain Dimensions
- Chain Size: R36250
- Pitch (P): 350mm
- Dimension (D2): 57.2mm
- Dimension (D6): 25.4mm
- Dimension (L): 66.7mm
- Dimension (H): 76.2mm
- Dimension (T): 12.7mm
- Dimension (F1): 69mm
- Dimension (F2): 78mm
- Average Ultimate Strength: 88,500 kG
R36250-A Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 140mm
- Dimension (F4): 100mm
- Dimension (Tp): 12.7mm
- Dimension (Q): 60mm
- Dimension (A): 32mm
- Dimension (O): 19mm
- Bolt Diameter: M16
R36250-B Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 140mm
- Dimension (F4): 100mm
- Dimension (Tp): 12.7mm
- Dimension (Q): 60mm
- Dimension (A): 32mm
- Dimension (O): 19mm
- Bolt Diameter: M16
- Chain Size: R36250
- Pitch (P): 350mm
- Dimension (D2): 57.2mm
- Dimension (D6): 25.4mm
- Dimension (L): 66.7mm
- Dimension (H): 76.2mm
- Dimension (T): 12.7mm
- Dimension (F1): 69mm
- Dimension (F2): 78mm
- Average Ultimate Strength: 88,500 kG
R36250-A Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 140mm
- Dimension (F4): 100mm
- Dimension (Tp): 12.7mm
- Dimension (Q): 60mm
- Dimension (A): 32mm
- Dimension (O): 19mm
- Bolt Diameter: M16
R36250-B Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 140mm
- Dimension (F4): 100mm
- Dimension (Tp): 12.7mm
- Dimension (Q): 60mm
- Dimension (A): 32mm
- Dimension (O): 19mm
- Bolt Diameter: M16
