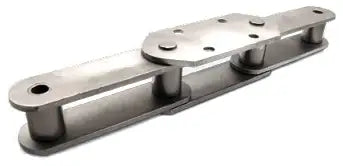

R36300 Chain - Conveyor Chain

R36300 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R36300 chain.

R36300 Chain Dimensions

• Chain Size: R36300
• Pitch (P): 300mm
• Dimension (D2): 57.2mm
• Dimension (D6): 25.4mm
• Dimension (L): 66.7mm
• Dimension (H): 76.2mm
• Dimension (T): 12.7mm
• Dimension (F1): 81mm
• Dimension (F2): 78mm
• Average Ultimate Strength: 88,500 kG

R36300-A Style G Attachment

• Dimension (V): 150mm
• Dimension (F3): 180mm
• Dimension (F4): 100mm
• Dimension (Tp): 12.7mm
• Dimension (Q): 60mm
• Dimension (A): 32mm
• Dimension (O): 19mm
• Bolt Diameter: M16

R36300-B Style G Attachment

• Dimension (V): 200mm
• Dimension (F3): 170mm
• Dimension (F4): 140mm
• Dimension (Tp): 12mm
• Dimension (Q): 72mm
• Dimension (A): 38mm
• Dimension (O): 24mm
• Bolt Diameter: M20
