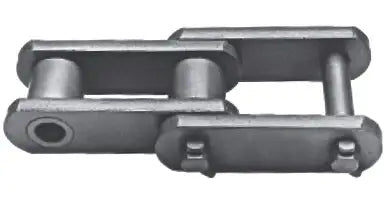

S810 Chain | Collector Chain

S810 collector chain is designed as a high-strength conveyor chain that is typically used in collector systems in wastewater treatment facilities. Our S810 chain offers superior performance and high working loads dependent on the material specs needed. We typically supply S810 collector chain as mild steel or stainless steel (304SS, 420SS, and 4003SS) depending on the application needs of the facility. Commonly the chain is supplied with an SF4 attachment paced varying lengths and flights for sludge. We also supply S810 sprockets, attachments, and the accompanying components that go in a collector system. To get a quote, please contact us, and we will be happy to assist you.

S810 Chain Dimensions

• Chain Size: S810
• Ultimate Strength: 10.00 Kg
• Pitch (P): 152.40mm
• Pin Diameter (D6): 22.20mm
• Width Between Sidebars (L): 22.00mm
• Side Plate Height (H): 33.00mm
• Side Plate Thickness (S): 4.50mm
• Overall Width (F1) 11.30mm
• Side Plate Thickness (S): 4.50mm
• Weight: 3.2 LBS/ FT

Additional Wastewater Treatment Products:

• Sprockets
• Bearings
• Gear Boxes/ Reducers
• Motors/ Drives
• Pumps & Seals
• Flights, Flight Boards, & Flight Monitoring
• Sensors
• Helical Scum Skimmers
• Wear Strips, Wear Shoes, Filler Blocks
• Static Sleeves & Wall Bearings
