FC-S2-200RE Bearing | SFC-2TE Pillow Block Bearing - Expansion

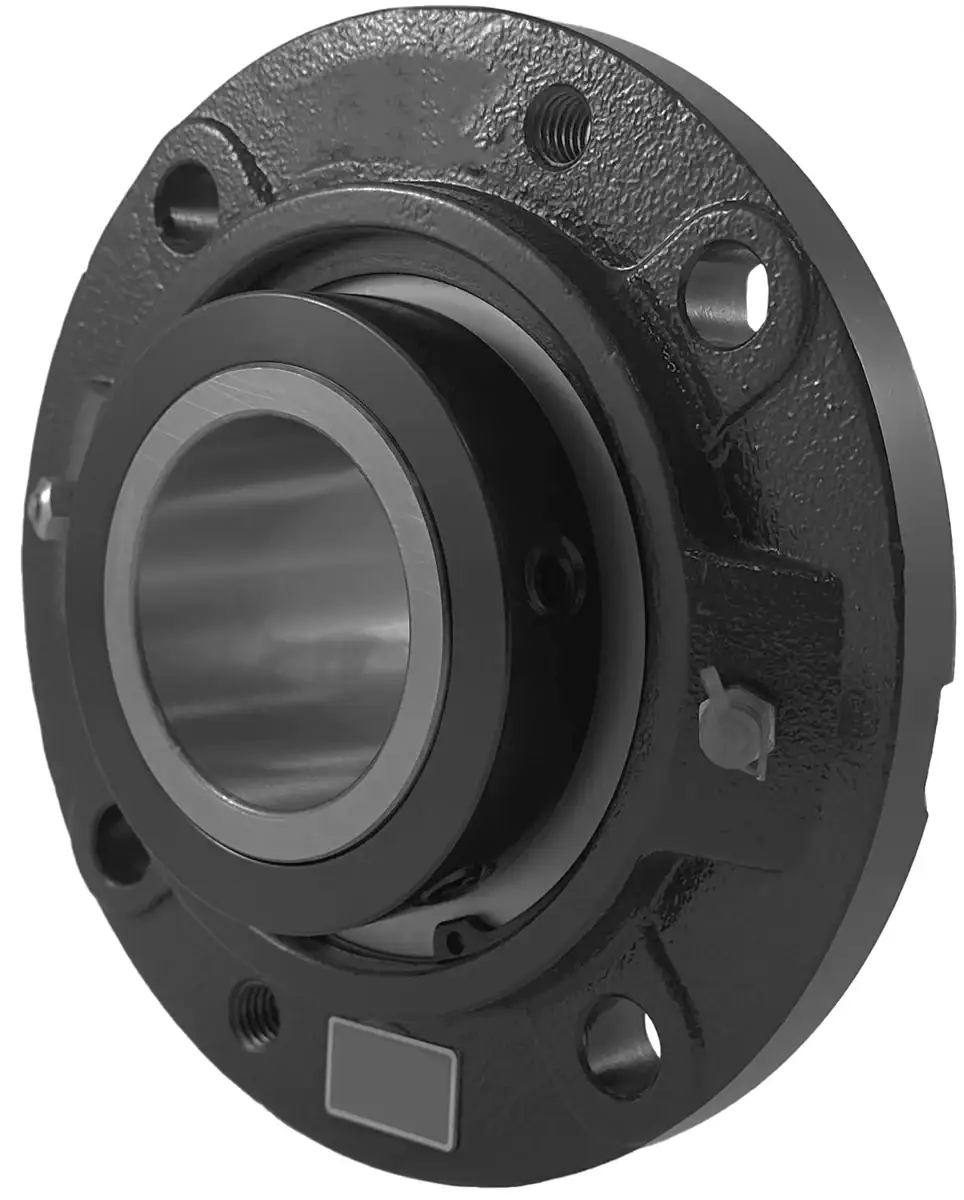

FC-S2-200RE bearing is a spherical 4-bolt flange cartridge expansion bearing unit with a 2" bore. Our directly interchanged SFC-2TE bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. The housing features threaded removal holes "S" along with pry slots to remove the unit easily. FC-S2-200RE bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an FC-S2-200RE interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, this expansion unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFC-2TE bearings interchange with other brands such as Dodge FC-S2-200RE, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SFC-2TE bearing replacement, contact our customer service team, and we will be happy to assist you!

SFC-2TE Bearing Dimensions

• Part #: SFC-2TE
• Interchanges With: FC-S2-200RE
• Weight: 7.45 LBS
• Dimension (d): 2"
• Dimension (P): 5.375"
• Dimension (A): 6.375"
• Dimension (Z): 3.156" (+/- 0.050")
• Dimension (J): 1.594"
• Dimension (BL): 2.875"
• Dimension (F): 4.500"
• Dimension (K): 2.875"
• Dimension (G): 0.563"
• Bolt Hole (T): 0.531"
• Removal Hole QTY: 2
• Removal Hole Size (S): 7/16-14 UNC"
• Dynamic Load Capacity (Cr): 20,460 LBS
• Dynamic Load Capacity (Cr): 91.0 kN
• Static Load Capacity (Cor): 25,630 LBS
• Static Load Capacity (Cor): 114.0 kN
