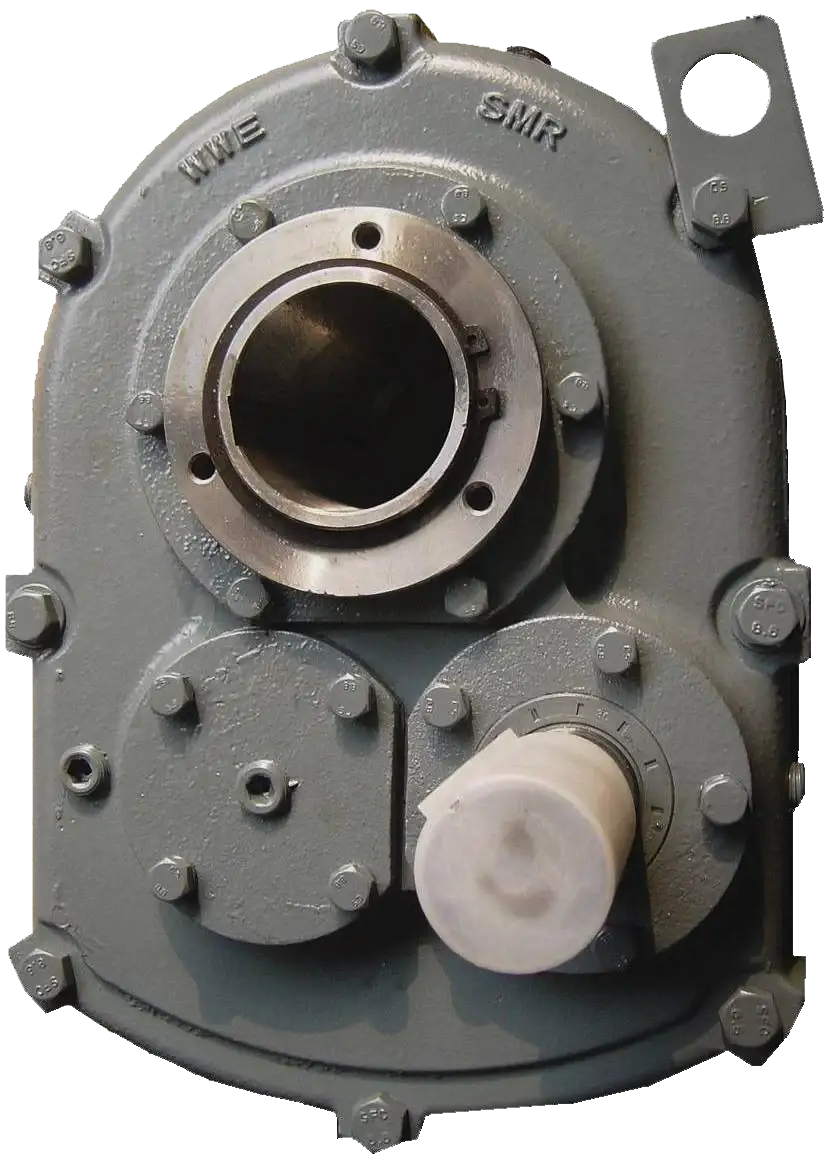

World Wide Electric SMR8-25/1 Reducer
Note:
Custom Cut to Length Chain Also Available
SKU: SMR8-25-REDUCER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
World Wide Electric SMR8-25/1 Reducer Features
World Wide Electric SMR8-25/1 Reducer Specifications
World Wide Electric SMR8-25/1 reducer is a high quality and extremely durable 25:1 shaft mount reducer. This reducer is a dimensional equivalent to the popular TXT series gearboxes and will even work with all TXT compatible accessories. Also for new applications we can supply a full line of motor mounts, belt guards, tapered bushings, and backstops.
One thing that really makes this a premium quality reducer is that both the shafts and gears are manufactured from a high grade steel, then case hardened, and then precision ground to A.G.M.A. Standards. The reducer also uses premium ball and tapered bushings for smooth operation and lower noise. All shafts use metal reinforced double lip seals to prevent oil leakage and articles from getting in. Then to wrap it all up the housing is made of a heavy duty FCD45 cast iron for corrosion resistance.
The World Wide Electric SMR8-25/1 reducer also interchanges with most other brands. To find out more, or to get pricing and availability please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
One thing that really makes this a premium quality reducer is that both the shafts and gears are manufactured from a high grade steel, then case hardened, and then precision ground to A.G.M.A. Standards. The reducer also uses premium ball and tapered bushings for smooth operation and lower noise. All shafts use metal reinforced double lip seals to prevent oil leakage and articles from getting in. Then to wrap it all up the housing is made of a heavy duty FCD45 cast iron for corrosion resistance.
SMR8-25 Reducer Dimensions
Part #: SMR8-25 Ratio: 25:1 Box Size: 8 Dimension (L): 20.25" Dimension (M): 28.25" Dimension (N): 14.03" Dimension (F): 2.4375" Key: 0.625" X 0.312" X 5.375" Maximum Dimension (B): 4-7/16" Dimension (C): 2.06" Dimension (E): 7.75" Dimension (G): 4.31" Dimension (W): 3.13" Dimension (U): 4.00" Dimension (X): 7.04" Dimension (V): 5.85" Dimension (Q): 7.11" Dimension (Y): 2.86" Dimension (H): 8.37" Dimension (A1): 6.03" Dimension (A2): 11.25" Dimension (A3): 9.50" Dimension (h): 10.13" Minimum Dimension (R): 30" Maximum Dimension (R): 36" Dimension (P): 0.75" Dimension (T): 7" Gear Box Weight: 655 LBS
The World Wide Electric SMR8-25/1 reducer also interchanges with most other brands. To find out more, or to get pricing and availability please contact us and we will be happy to assist you.
Email:
Part #: SMR8-25 Ratio: 25:1 Box Size: 8 Dimension (L): 20.25" Dimension (M): 28.25" Dimension (N): 14.03" Dimension (F): 2.4375" Key: 0.625" X 0.312" X 5.375" Maximum Dimension (B): 4-7/16" Dimension (C): 2.06" Dimension (E): 7.75" Dimension (G): 4.31" Dimension (W): 3.13" Dimension (U): 4.00" Dimension (X): 7.04" Dimension (V): 5.85" Dimension (Q): 7.11" Dimension (Y): 2.86" Dimension (H): 8.37" Dimension (A1): 6.03" Dimension (A2): 11.25" Dimension (A3): 9.50" Dimension (h): 10.13" Minimum Dimension (R): 30" Maximum Dimension (R): 36" Dimension (P): 0.75" Dimension (T): 7" Gear Box Weight: 655 LBS
