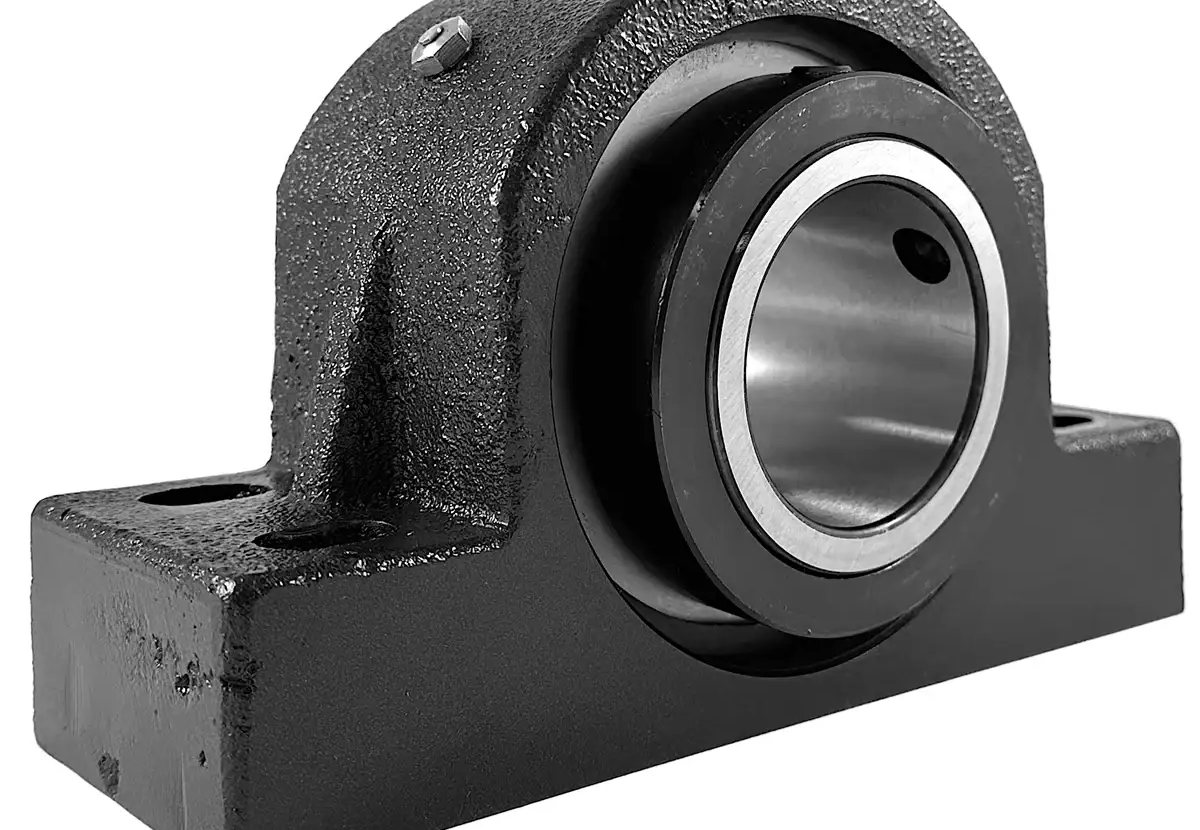

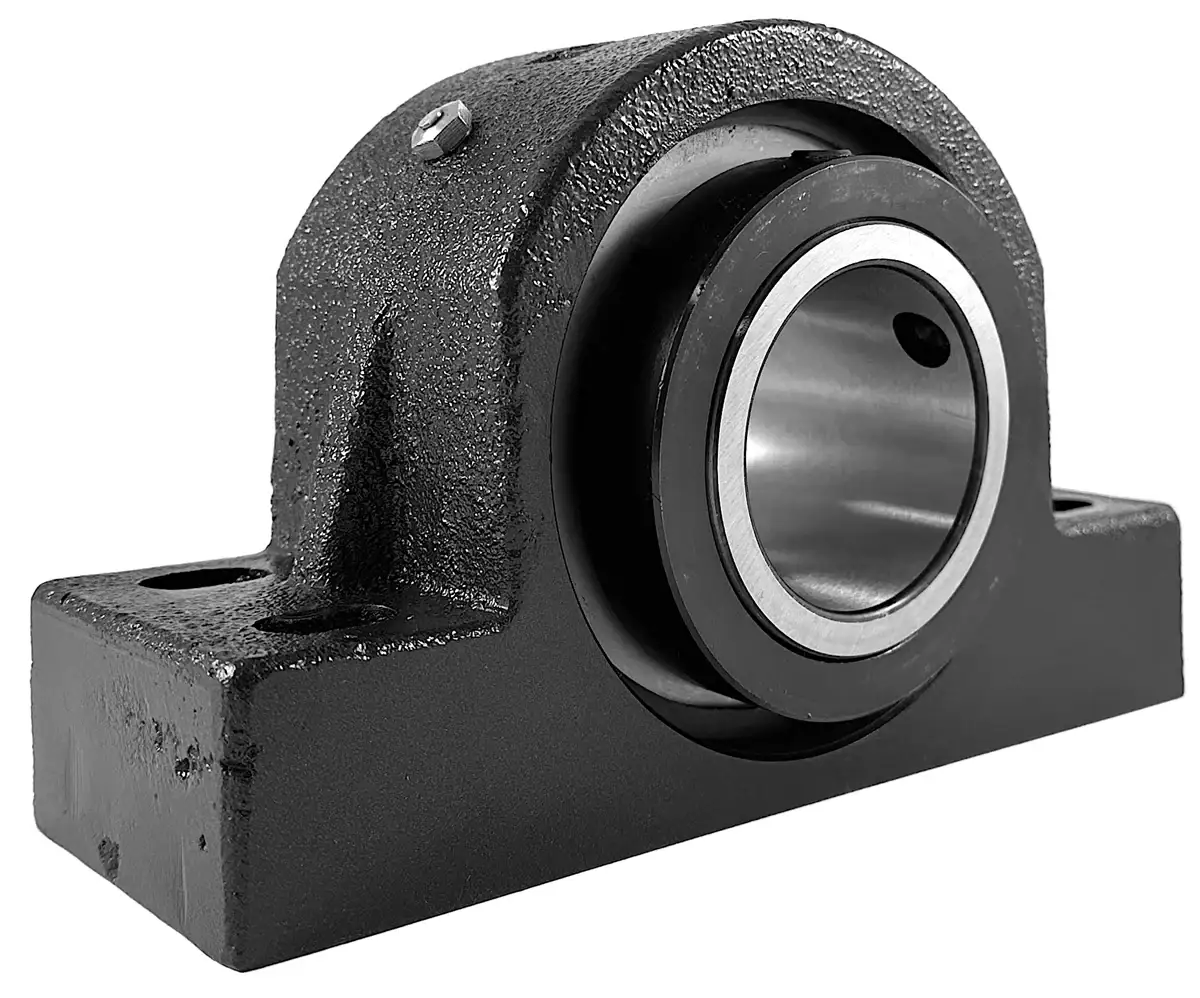

SPB4-3-15/16DT Pillow Block Bearing

SPB4-3-15/16DT bearing is a spherical 4-bolt pillow block bearing with a 3-15/16" bore and double set collars. Our premium bearing boasts superior construction and durability than other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. SPB4-3-15/16DT bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SPB4-3-15/16DT built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has two high-strength mild steel collars for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SPB4-3-15/16DT bearings interchange with other brands such as Dodge, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SPB4-3-15/16DT bearing replacement, contact our customer service team, and we will be happy to assist you!

SPB4-3-15/16DT Bearing Dimensions

• Part #: SPB4-3-15/16DT
• Weight: 59.5 LBS
• Dimension (d): 3-15/16"
• Dimension (H): 4.250"
• Dimension (A): 15.250"
• Dimension (E-Min.): 11.000"
• Dimension (E-Max.): 13.000"
• Dimension (B): 4.500"
• Dimension (S): 0.866"
• Dimension (P): 2.250"
• Dimension (G): 2.625"
• Dimension (W): 8.563"
• Dimension (Z): 5.219"
• Dimension (BL): 5.938"
• Dimension (K): 6.000"
• Dynamic Load Capacity (Cr): 84,410 LBS
• Dynamic Load Capacity (Cr): 375.5 kN
• Static Load Capacity (Cor): 112,580 LBS
• Static Load Capacity (Cor): 500.8 kN
