SS188 G19 Attachment
Home > Specialty Chain > Engineering Class Chains > Steel Bushed Chains > SS188 G19 Attachment

SS188 G19 Attachment

SKU: SS188-G19-ATTACHMENT
Only 0 left in stockItem is out of stock Item is unavailable
Request a Quote
<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715415015791" , "metafield_value":""}]
SS188 G19 Attachment Features
SS188 G19 Attachment Specifications
This SS188 G19 attachment is a premium high-strength attachment that is manufactured specifically for SS188 chain and can be assembled in any configuration needed. To get a quote for SS188 chain with G19 attachments or for more information please contact us and we will be happy to assist you!

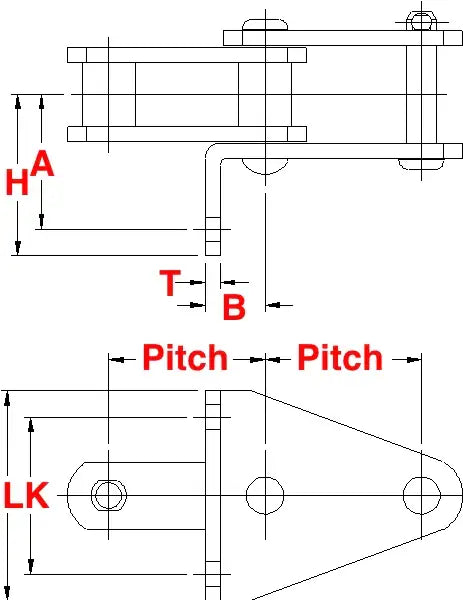

Dimensions:
SS188 G19 Attachment
  • Attachment Type: SS188 G19
  • Pitch: 2.609"
  • Dimension (A): 2.25"
  • Dimension (B): 1.00"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (H): 2.69"
  • Dimension (K): 2.62"
  • Dimension (L): 3.50"
  • Dimension (T): 0.25"
  • Weight Per Foot: 5.1 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"
  • Attachment Type: SS188 G19
  • Pitch: 2.609"
  • Dimension (A): 2.25"
  • Dimension (B): 1.00"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (H): 2.69"
  • Dimension (K): 2.62"
  • Dimension (L): 3.50"
  • Dimension (T): 0.25"
  • Weight Per Foot: 5.1 LBS
