VXT215 Shaft Mount Reducer

Power Transmission > Gear Reducers For Electric Motors > Shaft Mount Reducers

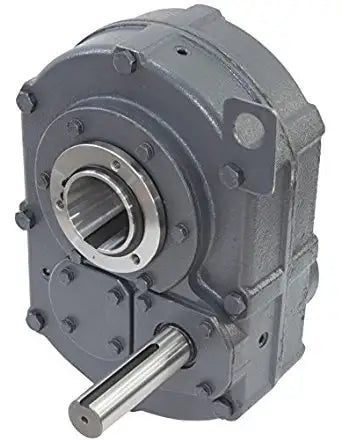

Vortex VXT215 Reducer

Note: Custom Cut to Length Chain Also Available
SKU: VXT215-REDUCER
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715453387119" , "metafield_value":""}]
Vortex VXT215 Reducer Features
Vortex VXT215 Reducer Specifications
This Vortex VXT215 reducer has a 15:1 ratio and is a premium quality, high strength gearbox. Vortex brand reducers use special gears that have been manufactured out of high-grade steel, then case hardened, and finally precision ground to AGMA standards for maximum durability and performance. The seals in a VXT215 reducer are spring loaded and double lipped for minimal oil leakage and provides an overall longer seal life, plus the seal is protected by a metal reinforced guard. The shaft used in Vortex reducers is manufactured out of heat-treated alloy steel for the highest strength and durability. The housing is manufactured out of cast iron to damper vibration and is coated with a highly corrosive resistant coating. To round it all off the Vortex VXT215 reducer uses a combination of premium tapered roller bearings and ball bearings to provide the highest load capacities and longest bearing life possible.

Reducer Dimensions:
Vortex VXT215 Reducer
  • Part #: VXT215
  • Ratio: 15:1
  • Box Size: 2
  • Dimension (L): 8.38"
  • Dimension (M): 11.41"
  • Dimension (N): 7.32"
  • Dimension (F): 1.125"
  • Key: 0.25" X 0.125" X 0.250"
  • Maximum Dimension (B): 1-15/16"
  • Dimension (C): 1.25"
  • Dimension (E): 4.06"
  • Dimension (G): 2.22"
  • Dimension (W): 1.06"
  • Dimension (U): 1.25"
  • Dimension (X): 3.68"
  • Dimension (V): 2.89"
  • Dimension (Q): 3.59"
  • Dimension (Y): 1.40"
  • Dimension (H): 4.56"
  • Dimension (A1): 2.14"
  • Dimension (A2): 4.32"
  • Dimension (A3): 3.75"
  • Dimension (h): 4.09"
  • Minimum Dimension (R): 26.94"
  • Maximum Dimension (R): 32.94"
  • Dimension (P): 0.44"
  • Dimension (T): 3.00"
  • Gear Box Weight: 58 LBS


Vortex shaft mount reducers are a direct drop in for TXT style reducers and are mechanically interchangeable with most other brands. For additional information or load and mechanical ratings on the Vortex VXT215, or to get pricing and availability. Please contact us and we will be happy to assist you.


Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part #: VXT215
  • Ratio: 15:1
  • Box Size: 2
  • Dimension (L): 8.38"
  • Dimension (M): 11.41"
  • Dimension (N): 7.32"
  • Dimension (F): 1.125"
  • Key: 0.25" X 0.125" X 0.250"
  • Maximum Dimension (B): 1-15/16"
  • Dimension (C): 1.25"
  • Dimension (E): 4.06"
  • Dimension (G): 2.22"
  • Dimension (W): 1.06"
  • Dimension (U): 1.25"
  • Dimension (X): 3.68"
  • Dimension (V): 2.89"
  • Dimension (Q): 3.59"
  • Dimension (Y): 1.40"
  • Dimension (H): 4.56"
  • Dimension (A1): 2.14"
  • Dimension (A2): 4.32"
  • Dimension (A3): 3.75"
  • Dimension (h): 4.09"
  • Minimum Dimension (R): 26.94"
  • Maximum Dimension (R): 32.94"
  • Dimension (P): 0.44"
  • Dimension (T): 3.00"
  • Gear Box Weight: 58 LBS
