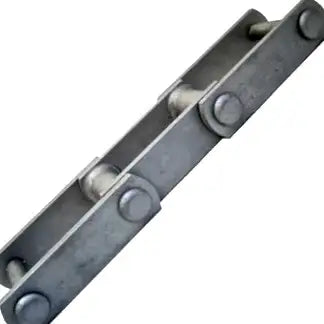

WHC111 Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Straight Sidebar Welded Steel Chain > WRC111/ WHC111 Chain

WHC111 Chain

Note: Custom Cut to Length Chain Also Available
SKU: WHC111-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715503260015" , "metafield_value":""}]
WHC111 Chain Features
WHC111 Chain Specifications
WHC111 chain is commonly found in forestry products, grain handling applications, and conveying applications. This WHC111 chain is a high quality, durable, and economically priced product. Something special about this chain is that each and every component is fully heat-treated and hardened to drastically increase the overall chain strength, working life, and durability.

Dimensions:
WHC111 Chain
  • Part Number: WHC111
  • Ultimate Strength: 57,000 LBS
  • Pitch (A): 4.760"
  • Sidebar Height (B): 1-3/4"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4.812"
  • Length Of Bearing (F): 3-3/8"
  • Maximum Sprocket thickness (G): 2.000"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.50
  • Weight Per Foot: 8.60 LBS

We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs. Select the image below to view some of the standard sprockets offered for this chain.

WHC111 Chain


Additionally we offer a full line of attachments for this chain and can assemble them onto the chain in any configuration needed. For pricing and availability on WHC111 chain, attachments, or sprockets, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WHC111
  • Ultimate Strength: 57,000 LBS
  • Pitch (A): 4.760"
  • Sidebar Height (B): 1-3/4"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4.812"
  • Length Of Bearing (F): 3-3/8"
  • Maximum Sprocket thickness (G): 2.000"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.50
  • Weight Per Foot: 8.60 LBS
