Specialty Chain > Engineering Class Chains > Welded Steel Chain > Straight Sidebar Welded Steel Chain > WRC111/ WHC111 Chain

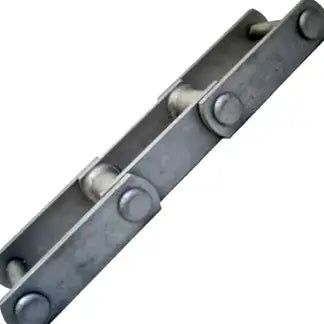

WRC111 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: WRC111-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
WRC111 Chain Features
WRC111 Chain Specifications
Part Number: WRC111 Ultimate Strength: 50,400 LBS Pitch (A): 4.760" Sidebar Height (B): 1-3/4" Sidebar Thickness (C): 3/8" Pin diameter (D): 3/4" Overall Width (E): 4.812" Length Of Bearing (F): 3-3/8" Maximum Sprocket thickness (G): 2.000" Barrel Outside Diameter (H): 1.250" Links Per Foot: 2.50 Weight Per Foot: 8.60 LBS
We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs.
Select the image below to view some of the standard sprockets offered for this chain.

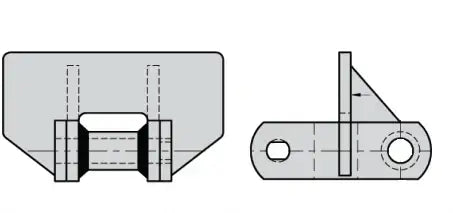

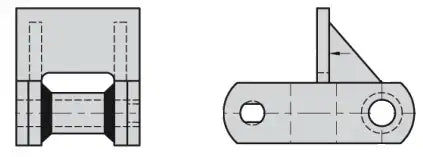

Additionally we offer a full line of attachments for this chain and can assemble them onto the chain in any configuration needed. For pricing and availability on WRC111 chain, attachments, or sprockets, please contact us.
Email:
Part Number: WRC111 Ultimate Strength: 50,400 LBS Pitch (A): 4.760" Sidebar Height (B): 1-3/4" Sidebar Thickness (C): 3/8" Pin diameter (D): 3/4" Overall Width (E): 4.812" Length Of Bearing (F): 3-3/8" Maximum Sprocket thickness (G): 2.000" Barrel Outside Diameter (H): 1.250" Links Per Foot: 2.50 Weight Per Foot: 8.60 LBS
