Economy Plus #100-3 Triple Strand Roller Chain - 10ft Box

Economy Plus #100-3 Triple Strand Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: ECO-100-3-10FT
Shipping calculated at checkout.
Other Customers Viewed
Economy Plus #100-3 Roller Chain Connecting Link (Master Link)
Economy Plus #100-3 Roller Chain Connecting Link (Master Link)
Login
Economy Plus #100-3 Triple Strand Roller Chain Offset Link
Economy Plus #100-3 Triple Strand Roller Chain Offset Link
Login
Spray On Chain Lube - 11oz Can
Spray On Chain Lube - 11oz Can
$54.99
Login
Made In USA 100 Chain Breaker | 100 Roller Chain Breaker
Made In USA 100 Chain Breaker | 100 Roller Chain Breaker
$149.99
Login
View full details
Description
Specification
Economy Plus #100-3 Triple Strand Roller Chain

This #100-3 triple strand roller chain fully meets all ANSI standards and is a durable, economically priced roller chain that has a tensile strength of 72,000lbs. The Economy Plus series roller chains feature heat-treated side plates to ensure the strength and durability of the roller chain. This roller chain also features solid rollers which will increase the performance and overall working life of the chain. Economy Plus #100-3 triple strand roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the Economy Plus Series #100-3 Triple Strand Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

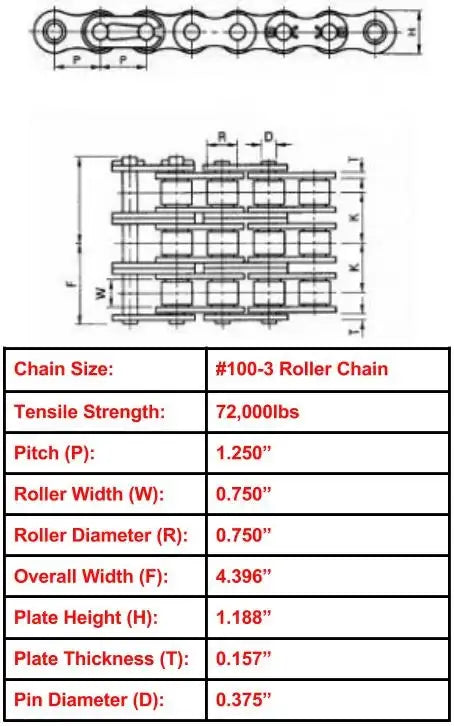

Dimensions:

  • Chain Size: #100-3 Roller Chain
  • Tensile Strength: 72,000lbs
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (D): 0.750"
  • Overall Chain Width (F): 4.396"
  • Link Plate Height (H): 1.188"
  • Link Plate Thickness (T): 0.157"
  • Pin Diameter (E): 0.375"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Size: #100-3 Triple Strand Roller Chain
  • Triple Strand Roller Chain
  • Tensile Strength: 72,000lbs
  • Constructed of Hardened Steel For Increased Strength & Durability
  • Has Solid Rollers For Increased Performance & Working Life
  • Fully Meets & Exceeds All ANSI Standards
Featured image
  • Chain Size: #100-3 Roller Chain
  • Tensile Strength: 72,000lbs
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (D): 0.750"
  • Overall Chain Width (F): 4.396"
  • Link Plate Height (H): 1.188"
  • Link Plate Thickness (T): 0.157"
  • Pin Diameter (E): 0.375"
  • Specifications Met: ANSI Standards
