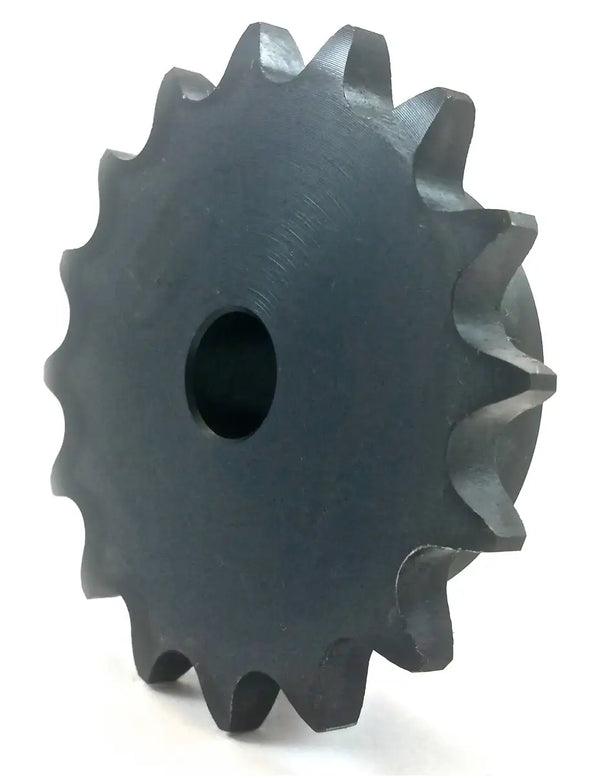

2060 Sprockets
2060 sprockets are manufactured for double-pitch chain sizes C2060, C2060H, and A2060. 2060 Chains have a 1.5" ANSI pitch and are considered to be a double pitch style chain as they have double the pitch of their ANSI 60 counterpart. Our offering of 2060 sprockets are manufactured dimensionally in accordance with ANSI B29.1 Standards and supersede in quality, precision, and overall working life. Our standard in-stock sizes (referenced on the below size chart) set themselves apart from other brands.2060 Chain Sprocket Features
The industry standard for ANSI sprockets is a 1018 steel material, ours utilize a denser and stronger form of carbon steel called C1045. Using this steel produces a stronger, longer-lasting, and overall better-performing sprocket in all application types. The Below chart shows the actual metallurgy specificational data between these two grades of steel.
1018 Steel Vs. 1045 Steel:
1018 Steel Vs. 1045 Steel:
| Properties | 1018 Steel | 1045 Steel |
|---|---|---|
| Brinell Hardness | 126 | 163 |
| Knoop Hardness | 145 | 184 |
| Rockwell B Hardness | 71 | 84 |
| Vickers Hardness | 131 | 170 |
| Ultimate Tensile Strength | 63,800 psi | 84,800 psi |
| Yield Tensile Strength | 53,700 psi | 65,300 psi |
| Elongation at Break (at 50mm) | 15% | 12% |
| Reduction of Aera | 40% | 35% |
| Modulus of Elasticity | 29,000 ksi | 29,990 ksi |
| Bulk Modules | 23,100 ksi | 23,600 ksi |
| Poissons Ratio | 0.29 | 0.29 |
| Machinability | 70% | -- |
| Shear Modulus | 11,300 ksi | 11,600 ksi |
Heat treating and hardening the teeth of a sprocket is, in essence, a process that changes the microstructure of the steel to achieve an even distribution of carbide crystals throughout the base structure. A sprocket with hardened teeth have a far superior working life than those who do not have it, this creates a much more abrasion and wear-resistant surface on the teeth. Please note that it is important that the heat-treatment is done to a precise Rockwell hardness spec that won't inflict additional wear on the roller chain. Our sprockets are heat-treated to this specific hardness so you get the maximum tooth and chain life.
Black oxide, also known as blackening is a conversion coating that prevents material buildup and corrosion. All of our standard in-stock 2060 sprockets undergo this process to ensure an extended life in dirty and or outdoor applications.
It's important to verify that you have a 2060 chain and not a 2062 chain when ordering sprockets because the tooth profiles are different. 2060 chains have rollers with diameters that do not extend past the side plates, while 2062 chains do. Most manufacturers use the same side-plates that have 2060 etched into them which can cause confusion in the matter, review the below photos to verify that you have a 2060 chain. We also stock
2062 chain sprockets for 2062 chains.
2060 Chain:
2062 Chain:
2060 Chain:
2062 Chain:
2060 Sprocket Size Chart
Note: The below chart shows our standard sprockets, we also supply custom made 2060 sprockets and can supply them in alternate materials upon request (plastic, stainless steel, aluminum, etc..)
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|

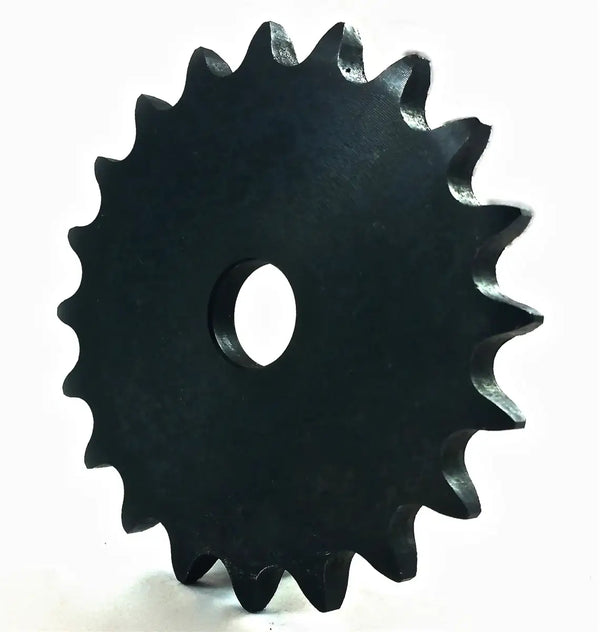

| 2060A24 | 24 | 6.150" | 23/32" | -- | -- | 3.02 LBS |
| 2060A25 | 25 | 6.390" | 23/32" | -- | -- | 3.36 LBS |
| 2060A26 | 26 | 6.630" | 23/32" | -- | -- | 3.58 LBS |
| 2060A28 | 28 | 7.110" | 23/32" | -- | -- | 4.12 LBS |
| 2060A30 | 30 | 7.590" | 23/32" | -- | -- | 4.88 LBS |
| 2060B11 | 11 | 3.000" | 3/4" | 1" | 1-1/4" | 1.14 LBS |
| 2060B12 | 12 | 3.250" | 3/4" | 1-1/4" | 1-1/4" | 1.46 LBS |
| 2060B13 | 13 | 3.490" | 3/4" | 1-5/16" | 1-1/4" | 1.52 LBS |
| 2060B14 | 14 | 3.740" | 3/4" | 1-9/16" |
1-1/4"
|
1.86 LBS |
| 2060B15 | 15 | 3.980" | 3/4" | 1-3/4" | 1-1/4" | 2.24 LBS |
| 2060B16 | 16 | 4.220" | 3/4" | 1-27/32" | 1-1/4" | 2.64 LBS |
| 2060B17 | 17 | 4.460" | 3/4" | 2-3/32" | 1-1/4" | 3.08 LBS |
| 2060B18 | 18 | 4.700" | 3/4" | 2-9/32" | 1-1/4" | 3.56 LBS |
| 2060B19 | 19 | 4.940" | 3/4" | 2-11/32" | 1-1/4" | 3.94 LBS |
| 2060B20 | 20 | 5.190" | 3/4" | 2-9/16" | 1-1/4" | 4.50 LBS |
| 2060B21 | 21 | 5.430" | 3/4" | 2-3/4" | 1-1/4" | 5.02 LBS |
| 2060B22 | 22 | 5.670" | 3/4" | 2-3/4" | 1-1/4" | 5.26 LBS |
| 2060B23 | 23 | 5.910" | 3/4" | 2-3/4" | 1-1/4" | 5.54 LBS |
| 2060B24 | 24 | 6.150" | 3/4" | 2-3/4" | 1-1/4" | 5.90 LBS |
| 2060B25 | 25 | 6.390" | 3/4" | 2-3/4" | 1-1/4" | 6.08 LBS |
| 2060B26 | 26 | 6.630" | 3/4" | 2-3/4" | 1-1/4" | 6.36 LBS |
| 2060B28 | 28 | 7.110" | 3/4" | 2-3/4" | 1-1/4" | 7.02 LBS |
| 2060B30 | 30 | 7.590" | 3/4" | 2-3/4" | 1-1/4" |
7.54 LBS
|
