Economy Plus #100 Cottered Roller Chain - 10ft Box

Economy Plus #100 Cottered Roller Chain
Economy Plus #100 Cottered Roller Chain



Alternative Views:




Product Code: ECO-COTTERED-100RC-10FT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

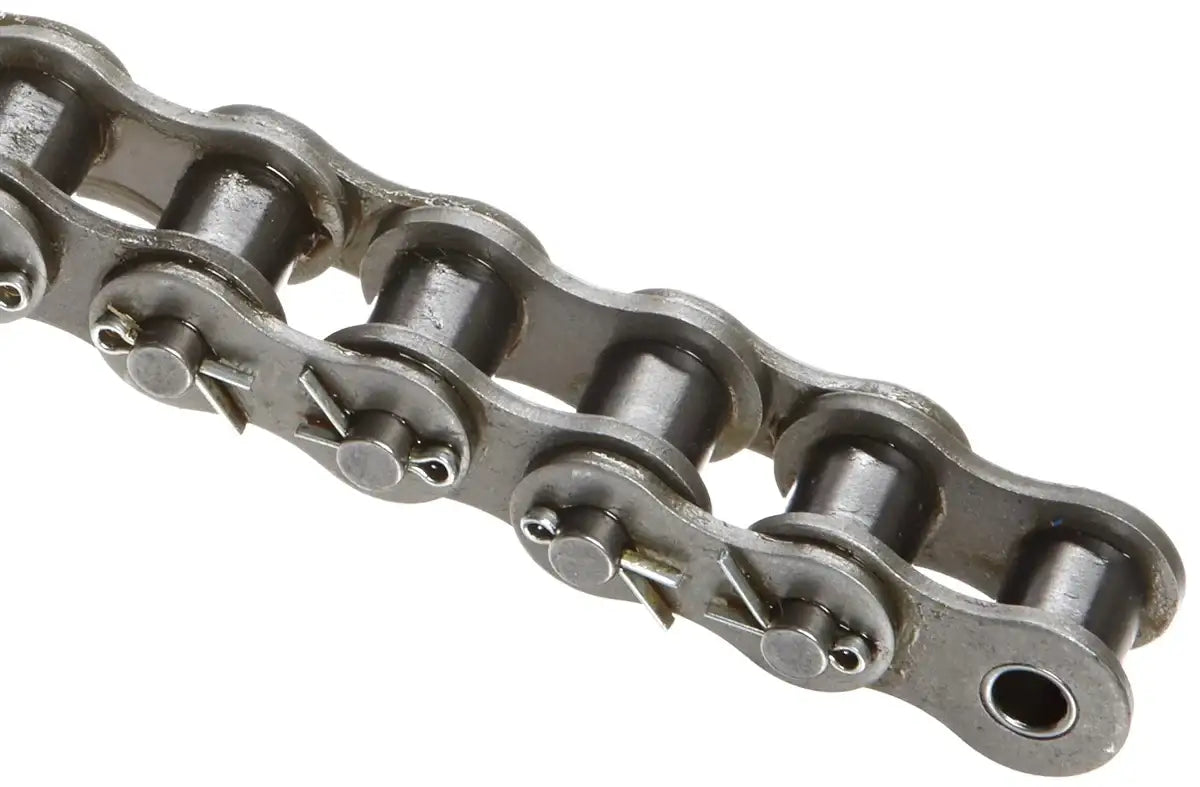

Economy Plus #100 Cottered Roller Chain

This #100 cottered roller chain fully meets all ANSI standards and is a durable, economically priced roller chain that has a tensile strength of 24,000lbs. The Economy Plus series roller chains feature heat-treated side plates to increase the strength and durability of the roller chain. This roller chain also features solid rollers, which will increase the performance and overall working life of the chain. Economy Plus #100 cottered roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the Economy Plus Series #100 cottered Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

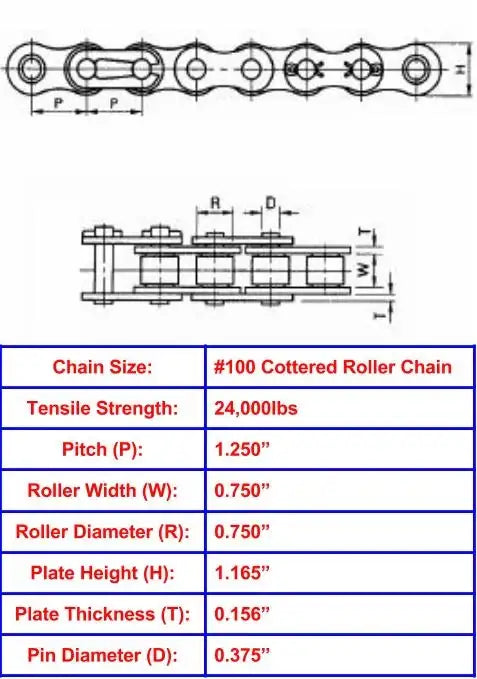

Dimensions:

  • Chain Size: #100 Cottered Roller Chain
  • Tensile Strength: 24,000lbs
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Plate Height (H): 1.165"
  • Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.375"

Phone: (407) 347-3519
Email:
sales@usarollerchain.com
USA Roller Chain
Features
    • Chain Size: #100 Cottered Roller Chain
    • Tensile Strength: 24,000LBS
    • Cottered
    • Economy Plus Quality
    • Shot Peened
    • Heat Treated
    • Supplied in a 10ft Box Including a Connecting Link

Accessories
#100 Connecting link #100 Roller Chain Offset link
#100 Roller Chain Connecting link #100 Roller Chain Offset link
