#100 K-1 Attachment

#100 K-1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 100-K-1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
#100 Roller Chain - 10ft Box
#100 Roller Chain - 10ft Box
Login
General Duty Plus #100 Roller Chain - 10ft Box
General Duty Plus #100 Roller Chain - 10ft Box
$229.99
Login
Premium #100 Roller Chain - 10ft Box | Premier Series Chain
Premium #100 Roller Chain - 10ft Box | Premier Series Chain
$399.99
Login
View full details
Description
Specification

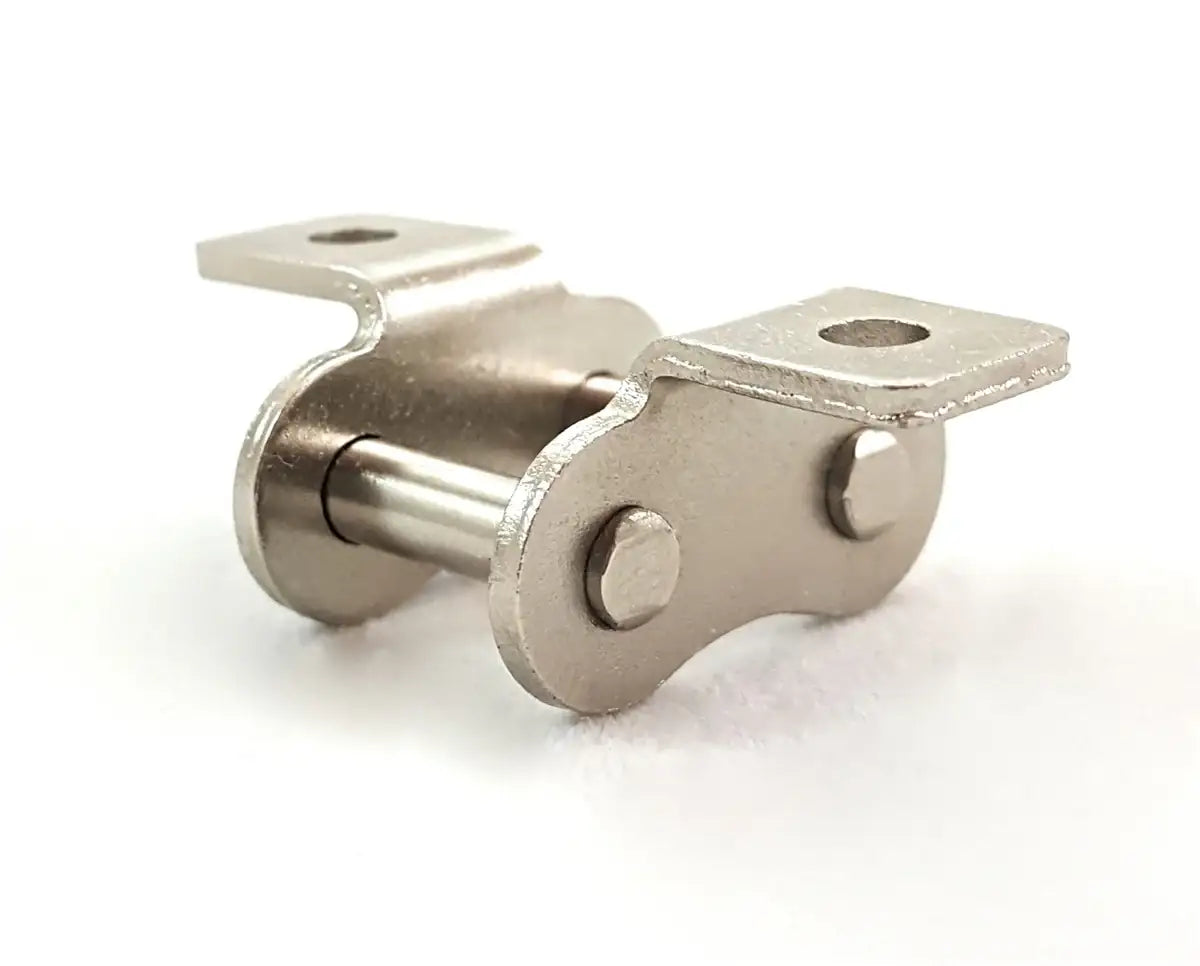

#100 K-1 attachment is a two side, one hole attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #100 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #100 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #100 K-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #100 K-1
  • Pitch (P): 1.250"
  • Width Between Roller Links (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Pin Diameter (D): 0.375"
  • Overall Chain Width: 1.556"
  • Overall Connecting Link Width: 1.678"
  • Link Plate Height (H): 1.185"
  • Link Plate Thickness (T): 0.156"
  • Attachment Dimension (C): 1.250"
  • Attachment Dimension (N): 1.000"
  • Attachment Dimension (O): 0.342"
  • Attachment Dimension (S): 0.780"
  • Attachment Dimension (X): 1.768"
  • Additional Weight Per Attachment: 0.115 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Attachment
  • Manufactured to ANSI Standards
  • Heat-Treated Components
