100E18 Sprocket (QD Type)

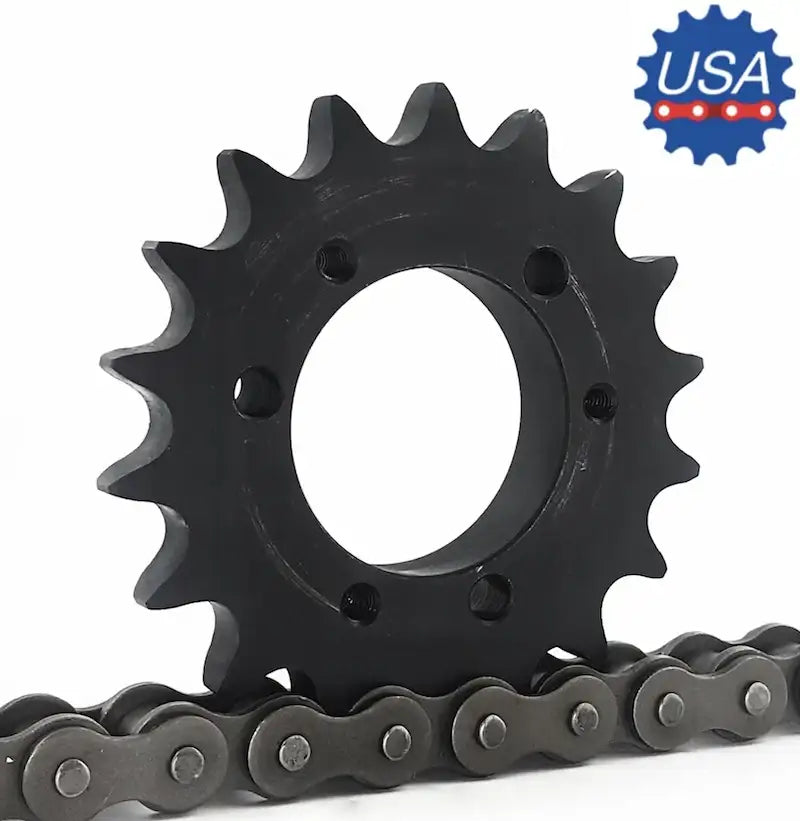

100E18 Sprocket QD Type sprocket
100E18 Sprocket

Our Price: $137.25
Note: Se habla espanol

Product Code: 100E18-SPROCKET

Description Technical Specs
This 100E18 sprocket is a durable, high quality, and precision sprocket with 18 hardened teeth that is manufactured to accept a E bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100 roller chain and sprocket. Meeting strict ANSI Standards prevents premature wear or breakage as well as making it directly interchangeable with other brands. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 100E18 sprockets are manufactured to accept a E type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large quantity request please contact us and we will be happy to assist you.

100E18 Sprocket Dimensions

  • Sprocket Size: 100E18
  • Tooth Count: 18
  • Bushing Size: E
  • Outside Diameter: 7.840"
  • Pitch Diameter: 7.198"
  • Type: B1
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 1-13/16"
  • Dimension (P): 1/8"
  • Dimension (G): 15/16"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.692"
  • Bushing Weight: 10.0 LBS
  • Sprocket Weight: 9.0 LBS

Phone: (407) 347-3519

About Us
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated For Corrosion Resistance
    • Directly Interchanges With Other Manufactures
    • Extremely Durable Construction With High-Performance
