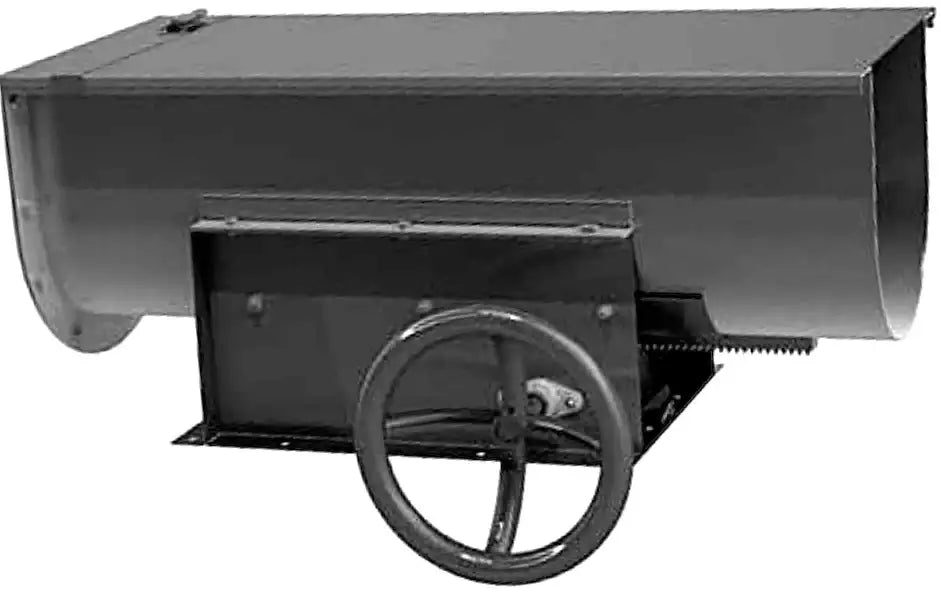

This curved slide 12" screw conveyor rack and pinion gate is made from high-quality 3/16" thickness steel. Rack and pinion slide discharge gates are designed with cut tooth racks that are welded to the curved slide plate, this rack engages with a cut tooth pinion that is mounted onto a shaft and is operated by a handwheel. Curved slides conform with the contour of the trough which eliminates all pockets that might trap the material in a spout above a flat slide. Curved slides can also be operated with the use of chain wheels or power-operated with electric motors, air, or hydraulic cylinders. For More information or to get a quote on curved slide 12" screw conveyor rack and pinion gates contact our customer service team and we will be happy to assist you!
Please note: for complete assembly (as shown above with hand-wheel) reference part # 350-0162
Curved Slide 12" Screw Conveyor Rack and Pinion Gate Dimensions
- Diameter of Conveyor: 12"
- Part #: 350-0709
- Thickness/ Gauge of Steel: 3/16
- Weight (LBS): 94
- Dimension (A): 13-1/4"
- Dimension (B): 17-1/4"
- Dimension (C): 11"
- Dimension (D): 15-5/8"
- Dimension (E): 3/16"
- Dimension (F): 10-5/8"
- Slide Thickness/ Gauge (G): 10
- Dimension (H): 14-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2-7/16"
- Dimension (M): 24-5/8"
Please note: for complete assembly (as shown above with hand-wheel) reference part # 350-0162
Feature
- High-Quality Rack and Pinion Slide Gate
- Made From Heavy-Duty Steel
- Can Be Furnished With a Range of Actuating Configurations
- Diameter of Conveyor: 12"
- Part #: 350-0709
- Thickness/ Gauge of Steel: 3/16
- Weight (LBS): 94
- Dimension (A): 13-1/4"
- Dimension (B): 17-1/4"
- Dimension (C): 11"
- Dimension (D): 15-5/8"
- Dimension (E): 3/16"
- Dimension (F): 10-5/8"
- Slide Thickness/ Gauge (G): 10
- Dimension (H): 14-7/16"
- Dimension (J): 12"
- Dimension (K): 12"
- Dimension (L): 2-7/16"
- Dimension (M): 24-5/8"
