#120 A-1 Attachment

#120 A-1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 120-A-1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
#120 Roller Chain 10ft Box | ANSI 120 chain
#120 Roller Chain 10ft Box | ANSI 120 chain
$249.99
Login
General Duty Plus #120 Roller Chain - 10ft Box
General Duty Plus #120 Roller Chain - 10ft Box
$329.99
Login
Premium #120 Roller Chain - 10ft Box | Premier Series Chain
Premium #120 Roller Chain - 10ft Box | Premier Series Chain
$599.99
Login
View full details
Description
Specification

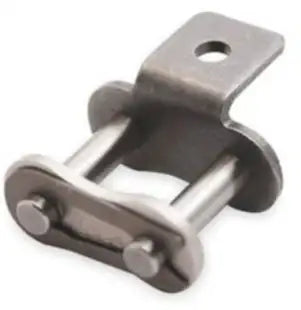

#120 A-1 attachment is a one side, one hole attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #120 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #120 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #120 A-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #120 A-1
  • Pitch (P): 1.500"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 0.875"
  • Pin Diameter (D): 0.437"
  • Overall Chain Width: 1.960"
  • Overall Connecting Link Width: 2.118"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.187"
  • Attachment Dimension (C): 1.500"
  • Attachment Dimension (N): 1.126"
  • Attachment Dimension (O): 0.386"
  • Attachment Dimension (S): 0.906"
  • Attachment Dimension (X): 2.197"
  • Additional Weight Per Attachment: 0.097 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Attachment
  • Manufactured to ANSI Standards
  • Heat-Treated Components
Featured image
  • Attachment size: #120 A-1
  • Pitch (P): 1.500"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 0.875"
  • Pin Diameter (D): 0.437"
  • Overall Chain Width: 1.960"
  • Overall Connecting Link Width: 2.118"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.187"
  • Attachment Dimension (C): 1.500"
  • Attachment Dimension (N): 1.126"
  • Attachment Dimension (O): 0.386"
  • Attachment Dimension (S): 0.906"
  • Attachment Dimension (X): 2.197"
  • Additional Weight Per Attachment: 0.097 LBS
