#120 K-1 Attachment

120 K-1 Attachment
120 K-1 Attachment

Note: Se habla espanol


Availability: Typically In-Stock
Product Code: 120-K-1-ATTACHMENT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

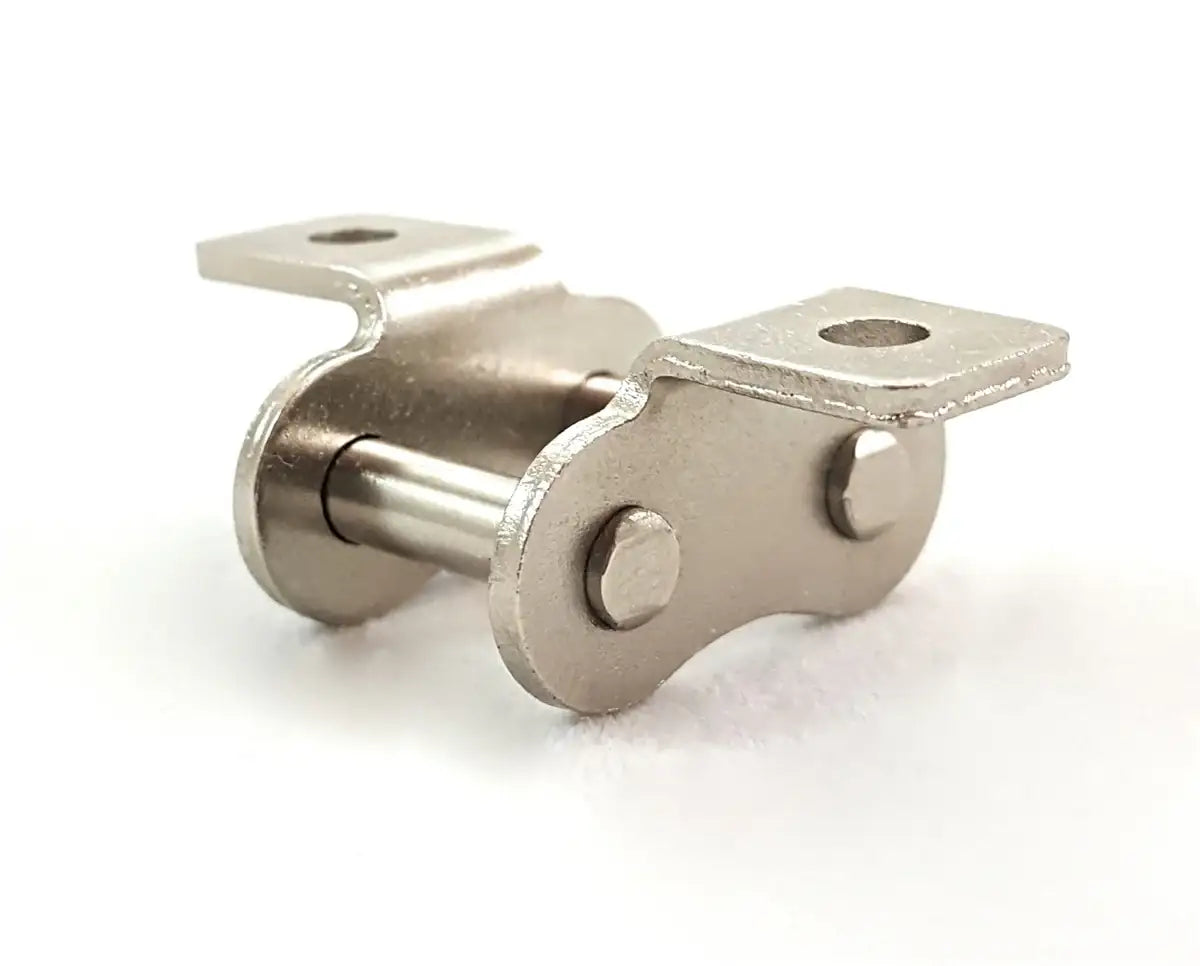

#120 K-1 attachment is a two side, one hole attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #120 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #120 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #120 K-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #120 K-1
  • Pitch (P): 1.500"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 0.875"
  • Pin Diameter (D): 0.437"
  • Overall Chain Width: 1.960"
  • Overall Connecting Link Width: 2.118"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.187"
  • Attachment Dimension (C): 1.500"
  • Attachment Dimension (N): 1.126"
  • Attachment Dimension (O): 0.386"
  • Attachment Dimension (S): 0.906"
  • Attachment Dimension (X): 2.197"
  • Additional Weight Per Attachment: 0.194 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

Click Here To See Our Other Products!


About Us
Features
    • Premium Quality Attachment
    • Manufactured to ANSI Standards
    • Heat-Treated Components
