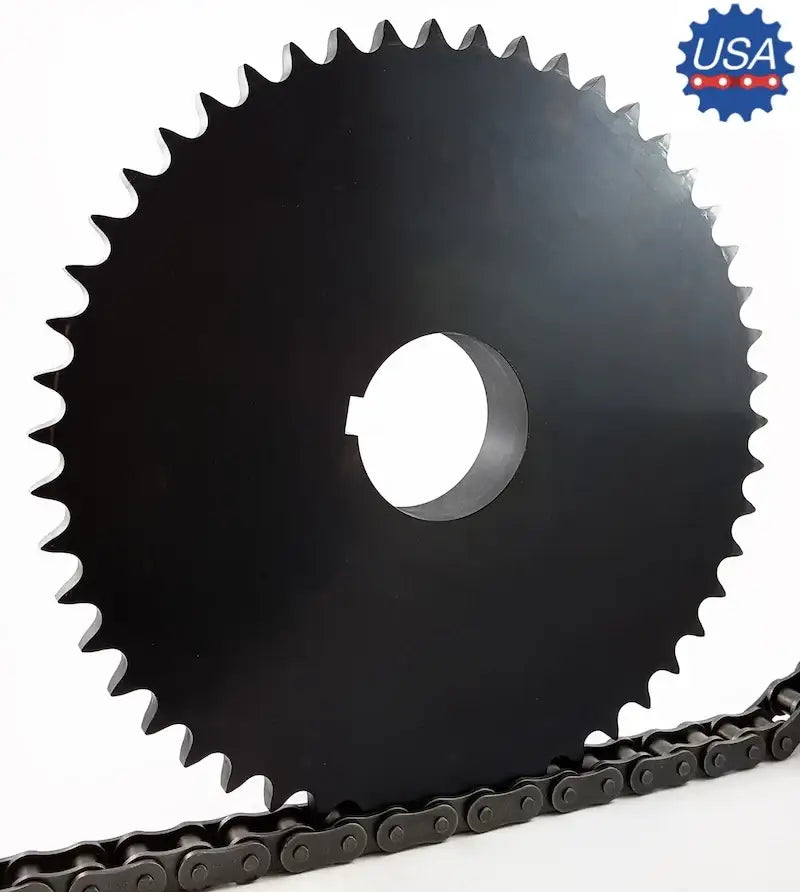

140S54 Sprocket (Taper Bushed)

140S54 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$709.99
$709.99
In Stock
On Sale Sold out
Product Code: 140S54-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
Login
General Duty Plus #140 Roller Chain - 10ft Box
General Duty Plus #140 Roller Chain - 10ft Box
$424.99
Login
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
$654.99
Login
View full details
Description
Specification
This 140S54 sprocket is a durable, high quality, and precision 54 tooth sprocket that is manufactured to accept a S2 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #140 roller chain and sprocket, thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 140S54 sprockets are made to accept a S2 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well within a fast production time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

140S54 Sprocket Dimensions
  • Sprocket Size: 140S54
  • Tooth Count: 54
  • Bushing Size: S2
  • Outside Diameter: 31.100"
  • Pitch Diameter: 30.097"
  • Sprocket Type: 6
  • Maximum Bore: 4-3/16"
  • Dimension (OL): 7-1/2"
  • Dimension (L): 6-3/4"
  • Dimension (C): 2-7/8"
  • Dimension (H): 6-3/8"
  • Dimension (P): 2-15/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 19.0 LBS
  • Sprocket Weight: 208.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Sprocket
  • Fully Meets All ANSI Standards
  • High Performance
  • Extremely Durable
  • Fully Black Oxide Coated
Featured image
  • Sprocket Size: 140S54
  • Tooth Count: 54
  • Bushing Size: S2
  • Outside Diameter: 31.100"
  • Pitch Diameter: 30.097"
  • Sprocket Type: 6
  • Maximum Bore: 4-3/16"
  • Dimension (OL): 7-1/2"
  • Dimension (L): 6-3/4"
  • Dimension (C): 2-7/8"
  • Dimension (H): 6-3/8"
  • Dimension (P): 2-15/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 19.0 LBS
  • Sprocket Weight: 208.0 LBS
