1953 Chain

1953 Chain Alloy 1953 Drag Chain
1953 Chain





Availability: Normally In Stock
Product Code: 1953-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

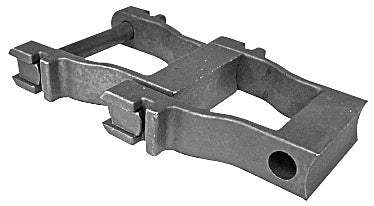

1953 Chain is considered a cast alloy drag chain and features an ultimate strength of 158,800 LBS. This 1953 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of 1953 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 1953
  • Style: 1
  • Pitch (A): 9.00"
  • Weight: 30.8 LBS/ FT
  • Weight Per Pin: 3.0 LBS
  • Average Ultimate Strength: 158,800 LBS
  • Recommended Working Load: 20,100 LBS
  • Barrel Length (B): 6.88"
  • Sidebar Width (C): 2.50"
  • Pin Diameter (D): 1.13"
  • Maximum Sprocket Width (E): 4.75"
  • Maximum Overall Average Width (F): 10.00"
  • Pin Head to Center Line (G): 4.81"
  • Pin End to Center Line (H): 5.00"

Phone: (407) 347-3519
Email:
sales@usarollerchain.com



About Us
Features
    • High Quality Chain
    • Extremely Durable
    • Long Working life
    • High Strength
