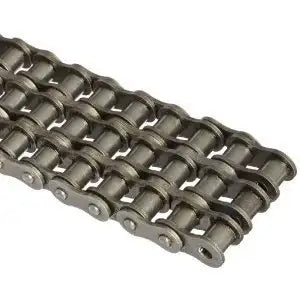

Premium 200-3K Roller Chain - 10ft Box

Premium 200-3K Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: 200-3K-ROLLER-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
#200-3K triple roller chain is apart of the Super High Strength K series premium roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI roller chain. K series roller chains will run on standard #200-3 roller chain sprockets and are recommended for slow to moderate speed, heavy load drive applications. Something else that sets this chain apart is that it features solid bushings and solid rollers, this greatly increased the performance, working life, and strength of the roller chain and decreases the energy consumption by creating less friction. If you're needing a large quantity of #200-3K roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:

  • Chain #: 200-3K
  • Pitch (P): 2.500"
  • Roller Diameter (D): 1.562"
  • Width Between Plates (W): 1.500"
  • Link Plate Height (H): 2.362"
  • Side Plate Thickness (T): 0.315"
  • Pin Diameter (E): 0.781"
  • Pin Length (L): 8.713"
  • Average Tensile Strength: 320,100 LBS
  • Maximum Recommended Working Load: 42,900 LBS
  • Weight Per Foot: 31.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • Super High Strength
  • Premium Quality Roller Chain
  • Meets & Exceeds ANSI Standards
  • Has Solid Bushings & Solid Rollers
  • Manufactured Using Precession Components
Featured image
  • Chain #: 200-3K
  • Pitch (P): 2.500"
  • Roller Diameter (D): 1.562"
  • Width Between Plates (W): 1.500"
  • Link Plate Height (H): 2.362"
  • Side Plate Thickness (T): 0.315"
  • Pin Diameter (E): 0.781"
  • Pin Length (L): 8.713"
  • Average Tensile Strength: 320,100 LBS
  • Maximum Recommended Working Load: 42,900 LBS
  • Weight Per Foot: 31.0 LBS
