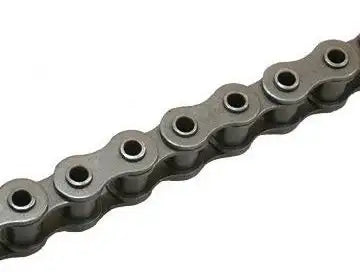

Chain Size: 226 PF Pitch (P): 12.70 mm Roller Diameter (Dr): 8.51 mm Inside Width (W): 7.75 mm Plate Height (Hi): 11.81 mm Transverse Pitch (Tp): 13.92 mm Pin Outside Diameter (Dp): 4.46 mm Pin Inside Diameter (Df): 3.05 mm Pin Width (A1): 30.8 mm Overall Width (B): 30.8 mm Average Ultimate Strength: 19.8 kN Average Weight: 1.18 Kg/m
Email:
Feature
- Premium Quality Chain
- Supplied With One Connecting Link Per Box
- Extremely High-Strength and Durable
Chain Size: 226 PF Pitch (P): 12.70 mm Roller Diameter (Dr): 8.51 mm Inside Width (W): 7.75 mm Plate Height (Hi): 11.81 mm Transverse Pitch (Tp): 13.92 mm Pin Outside Diameter (Dp): 4.46 mm Pin Inside Diameter (Df): 3.05 mm Pin Width (A1): 30.8 mm Overall Width (B): 30.8 mm Average Ultimate Strength: 19.8 kN Average Weight: 1.18 Kg/m
