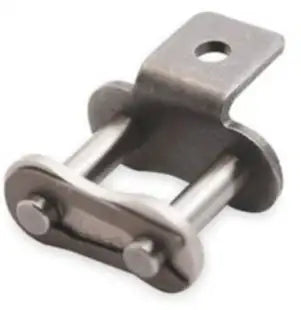

#25 A-1 Attachment
#25 A-1 Attachment
Note:
Custom Cut to Length Chain Also Available
Product Code: 25-A-1-ATTACHMENT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Attachment size: #25 A-1 Pitch (P): 0.250" Width Between Roller Links (W): 0.125" Roller Diameter (R): 0.130" Pin Diameter (D): 0.090" Overall Chain Width: 0.300" Overall Connecting Link Width: 0.340" Link Plate Height (H): 0.230" Link Plate Thickness (T): 0.030" Attachment Dimension (C): 0.281" Attachment Dimension (N): 0.220" Attachment Dimension (O): 0.134" Attachment Dimension (S): 0.187" Attachment Dimension (X): 0.421" Additional Weight Per Attachment: 0.001 LBS
Email:
Feature
Premium Quality Attachment Manufactured to ANSI Standards Heat-Treated Components
Attachment size: #25 A-1 Pitch (P): 0.250" Width Between Roller Links (W): 0.125" Roller Diameter (R): 0.130" Pin Diameter (D): 0.090" Overall Chain Width: 0.300" Overall Connecting Link Width: 0.340" Link Plate Height (H): 0.230" Link Plate Thickness (T): 0.030" Attachment Dimension (C): 0.281" Attachment Dimension (N): 0.220" Attachment Dimension (O): 0.134" Attachment Dimension (S): 0.187" Attachment Dimension (X): 0.421" Additional Weight Per Attachment: 0.001 LBS
