Made In USA 25 Chain Breaker | 25 Roller Chain Breaker

25-chain-breaker

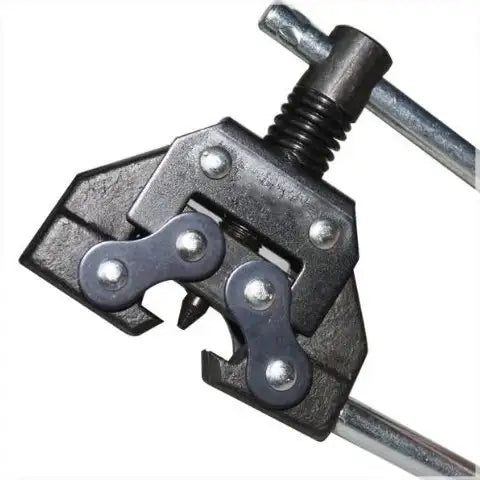

Made In USA 25 Chain Breaker



Alternative Views:


Our Price: $99.99


Availability: Usually Ships Within 24 Hours
Product Code: CB1-25
Qty:

Description

Breaking 25 roller chains has never been easier, thanks to our premium 25-chain breaker. Forged from the highest-quality tool-grade steel and made right here in the USA, our 25 roller chain breaker sets the bar for chain tools! Our chain breaker is also supplied with an additional easy-to-install replacement tip, almost doubling the usable life of the device itself. Whether you're breaking chain on a regular basis or multiple times a day, our durable chain breaker is up for the job. The 25 roller chain breakers highly versatile design also allows it to break additional chain sizes with a pitch of 1/4" to 3/4". Unlike other 25 chain breakers on the market, our tool components are all 100% replaceable to alleviate the need for purchasing an entirely new tool when a specific component wears out down the road. Our unique and versatile packaging allows the tool to be arranged on a wall or tool-bench tab for easy storage in your shop or storefront. Contact our customer support team for additional information or bulk purchase options; we will gladly assist you!

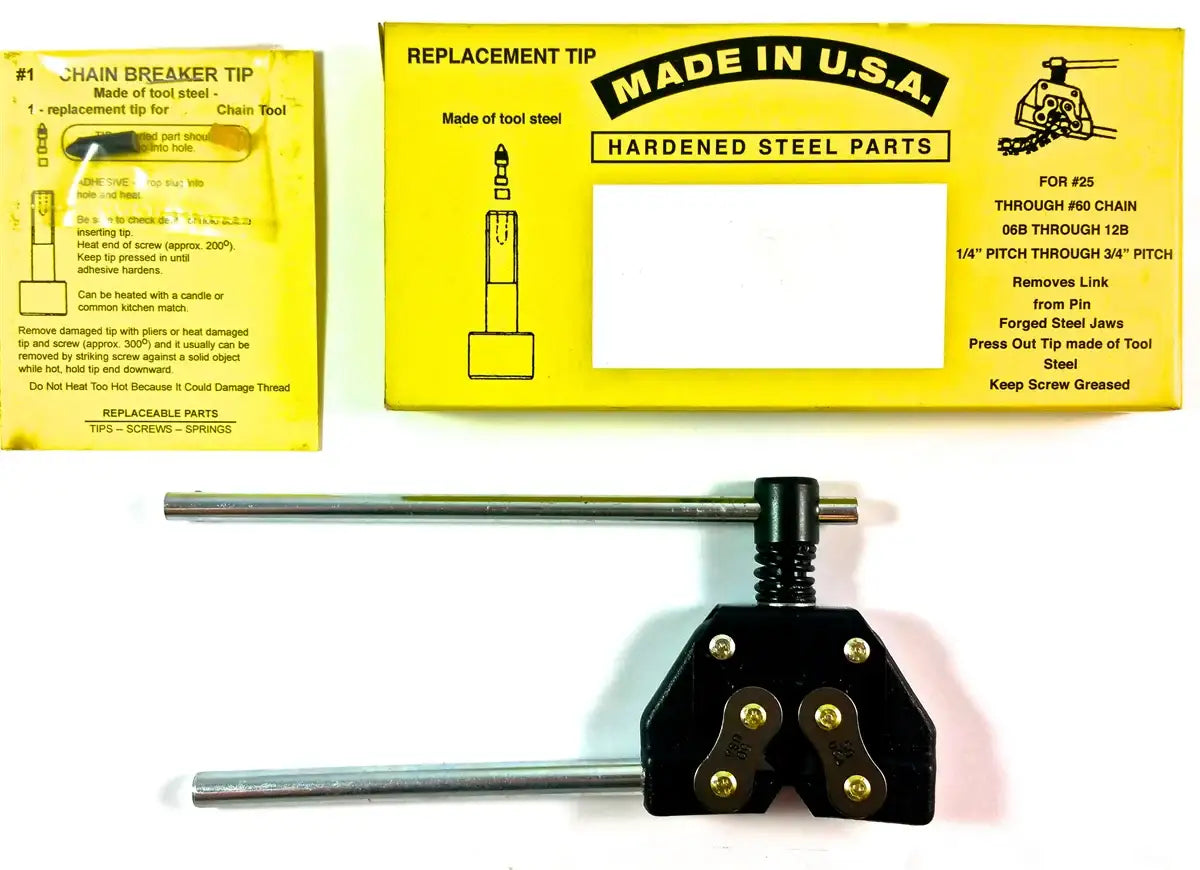

25 Chain Breaker Contents
  • Tool Itself
  • Extra Replacement Tip
  • Operating Instructions
  • Removable Handle
  • Unique Storage Box

25 Roller chain Breaker Replacement Parts

We want our tools to be used for years, so we offer extra parts. Not only does this make it so that you don't have to purchase a whole new breaker, but it also ensures you won't be without your breaker. Even in the toughest jobs!

25 Chain Breaker Tip

The tip is easy to keep around; this part of the tool takes 95% of the wear and tear. One extra one is supplied in the box, but if you plan on breaking the chain consistently, it doesn't hurt to have an extra tip or two to ensure you don't have to go without your breaker.

25 Chain Breaker Screw Assembly

The screw assembly is the component that houses the tip and is the part where the handle slides through. Though you shouldn't need one of these for a while, it's nice to have an extra one around whenever you do.

How To Use 25 Chain Breaker

Safety Notes:
  • Make sure you are wearing safety glasses as well as safety gloves before using the chain breaker.
  • Ensure there is no tension on the roller chain; this may require a roller chain puller.
  • Make sure all equipment that the chain is on is shut off.
Step 1

Clamp the Chain Breaker Onto the rollers of the roller chain.
Note: It is imperative to ensure that the tip of the roller chain breaker and the pin of the roller chain are aligned exactly. If not, you may break the chain breaker tip or be unable to break the roller chain.
Step 2

Turn the handle clockwise to push the pin and break the rivet of the chain.
The end result of this should look something like the photo below. As you can see, the roller chain rivet has been broken. Some people choose to stop at this step and attempt to push the single pin out. While this may work in some instances, it is not recommended and can be very difficult to do.
Step 3

Next, you basically repeat steps one and two on the other pin.

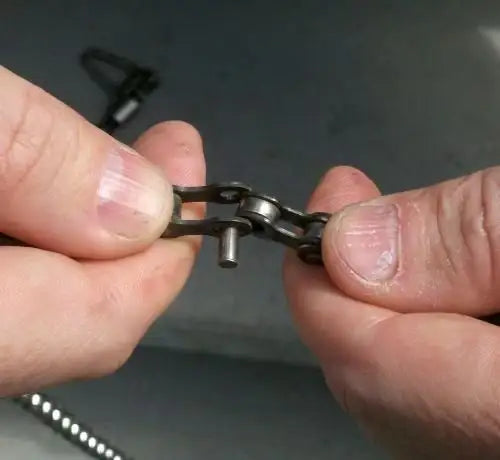

After this step, your chain should look something like the photo below. Both rivets on that chain side are now broken, and you are ready to remove the pin link.

End Result

If all steps are done correctly, and you have removed your pins, you should have successfully cut/ broken your roller chain.

Features


    • Made in The USA


    • Breaks Chain Sizes #25 - #60


    • Constructed Out of Premium Quality, Tool Grade Steel


    • Extreme Performance & Durability


    • Included One Extra Tip For Increased Working Life

Accessories
USA 25-60 Chain Breaker Screw Assembly USA 25-60 Chain Breaker Replacment Tip
Our Price: $29.99
Our Price: $9.99
USA 25-60 Chain Breaker Replacment Screw Assembly USA 25-60 Chain Breaker Replacment Tip

Share your knowledge of this product. Be the first to write a review »
