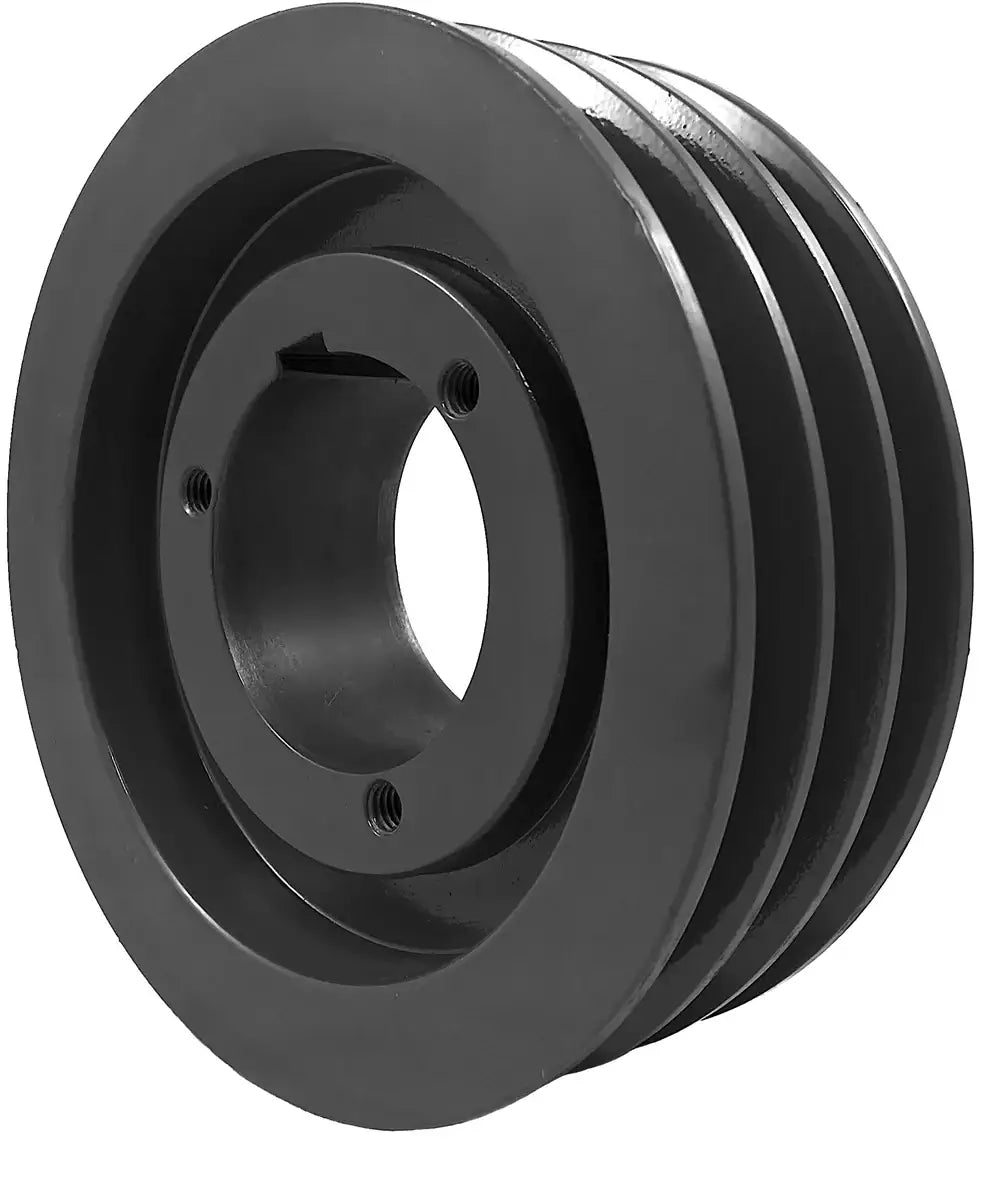

3TB54 Pulley Dimensions

- Size: 3TB54
- Bushing Type Needed: P1
- Pitch Diameter (A/ 4L): 5.0"
- Pitch Diameter (B/ 5L): 5.4"
- Outside Diameter: 5.75"
- Type: 13
- Overall Width (O.L.): 2-3/4"
- Dimension (L): 1-15/16"
- Dimension (P): 3/16"
- Dimension (C): 0"
- Dimension (H): 3"
- Dimension (F): 2-1/2"
- Dimension (G): 5/8"
- Dimension (X): 1-5/16"
- Dimension (E): 1/4"
- Sheave Weight: 8.3 LBS
USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a triple groove 3TB54 pulley, or to get pricing and availability on the accompanying belts/ P1-bushings, please contact us and we will be happy to assist you.
Feature
- Premium Quality V-Belt Pulley
- Manufactured In Accordance With ARPM Standard IP20
- Corrosion Resistance
- High-Performance
- Extremely Durable

- Size: 3TB54
- Bushing Type Needed: P1
- Pitch Diameter (A/ 4L): 5.0"
- Pitch Diameter (B/ 5L): 5.4"
- Outside Diameter: 5.75"
- Type: 13
- Overall Width (O.L.): 2-3/4"
- Dimension (L): 1-15/16"
- Dimension (P): 3/16"
- Dimension (C): 0"
- Dimension (H): 3"
- Dimension (F): 2-1/2"
- Dimension (G): 5/8"
- Dimension (X): 1-5/16"
- Dimension (E): 1/4"
- Sheave Weight: 8.3 LBS
