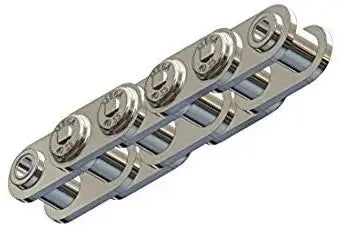

#40 Mega Stainless Steel Roller Chain - 10ft Box

High Strength #40SS Mega Stainless Steel Roller Chain




Product Code: GDP-40SS-MEGA-10FT
Contact Us For Pricing & Availability

Description Technical Specs

This #40 Mega Series stainless steel roller chain bar far is the strongest stainless steel roller chain available. Wear performance for this chain has increased dramatically by 35-50% due to the larger bearing areas and unique labyrinth seal design. Each part that is in this stainless steel roller chain is constructed out of a premium quality ANSI 304-grade austenitic stainless steel that is excellent for heat and it is highly corrosion resistant. The strength of this chain even challenges the strength of the premium carbon steel roller chains. This chain is commonly in stock in 10ft boxes including one connecting link per box. The chain will work on ANSI standard sprockets, if you have any additional questions or need more information give us a call!

Dimensions:
  • Chain Size: #40SS Mega
  • Tensile Strength: 3,970lbs
  • Working Load: 250lbs
  • **NOTE: ALL DEMINSIONS ARE GIVEN IN INCHES**
  • Pitch (P): 0.500
  • Roller Width (W): 0.312
  • Roller Diameter (R): 0.312
  • Overall Chain Width (F): 0.760
  • Link Plate Height (H): 0.472
  • Link Plate Thickness (T): 0.060
  • Pin Diameter (D): 0.156
  • Specifications Met: ANSI Standards
USA Roller Chain
Features
    • Constructed of 304 Grade Stainless Steel
    • Mega Series Stainless Steel Roller Chain
    • 3,970lbs Tensile Strength
    • 250lbs Rated Working Load
    • Size: #40 Mega Stainless Steel
    • Ultimate Performance
    • 35-50% Increased Wear Life
    • Premium Quality
    • Extreme Resistance to Corrosion
    • High Strength & Durability
    • Will Operate in low & High Temperature Applications

Accessories
#40 Mega Stainless Steel Connecting Link
#40 Mega Stainless Steel Connecting Link
