#41 K-1 Attachment

#41 K-1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 41-K-1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
41 Roller Chain | ANSI 41 Chain 10ft Box
41 Roller Chain | ANSI 41 Chain 10ft Box
Login
General Duty Plus #41 Roller Chain - 10ft Box
General Duty Plus #41 Roller Chain - 10ft Box
$32.99
Login
Premium #41 Roller Chain - 10ft Box | Premier Series Chain
Premium #41 Roller Chain - 10ft Box | Premier Series Chain
$59.99
Login
View full details
Description
Specification

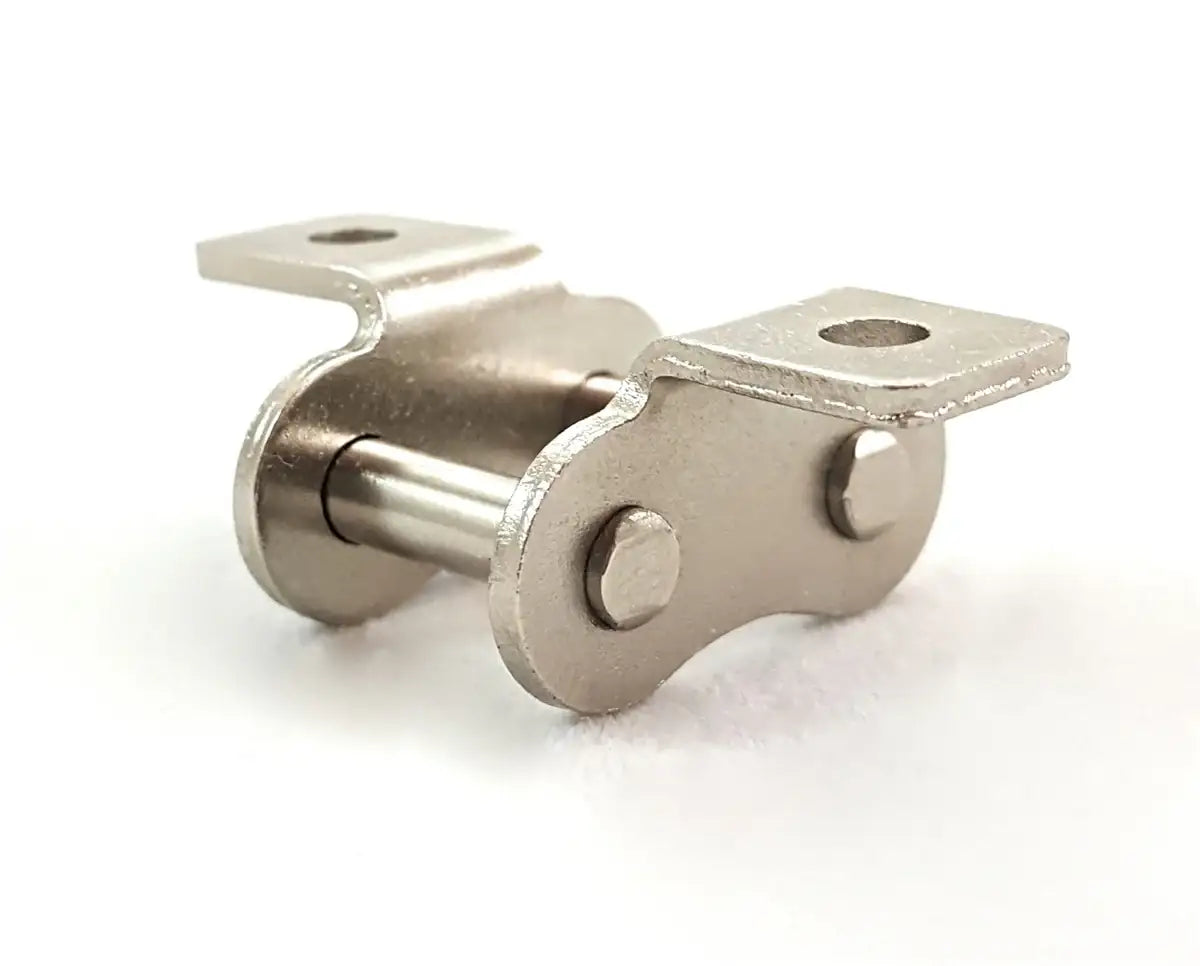

#41 K-1 attachment is a two side, one hole attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #41 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #41 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #41 K-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #41 K-1
  • Pitch (P): 0.500"
  • Width Between Roller Links (W): 0.250"
  • Roller Diameter (R): 0.306"
  • Pin Diameter (D): 0.141"
  • Overall Chain Width: 0.532"
  • Overall Connecting Link Width: 0.579"
  • Link Plate Height (H): 0.386"
  • Link Plate Thickness (T): 0.050"
  • Attachment Dimension (C): 0.469"
  • Attachment Dimension (N): 0.375"
  • Attachment Dimension (O): 0.141"
  • Attachment Dimension (S): 0.281"
  • Attachment Dimension (X): 0.646"
  • Additional Weight Per Attachment: 0.007 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Attachment
  • Manufactured to ANSI Standards
  • Heat-Treated Components
Featured image
  • Attachment size: #41 K-1
  • Pitch (P): 0.500"
  • Width Between Roller Links (W): 0.250"
  • Roller Diameter (R): 0.306"
  • Pin Diameter (D): 0.141"
  • Overall Chain Width: 0.532"
  • Overall Connecting Link Width: 0.579"
  • Link Plate Height (H): 0.386"
  • Link Plate Thickness (T): 0.050"
  • Attachment Dimension (C): 0.469"
  • Attachment Dimension (N): 0.375"
  • Attachment Dimension (O): 0.141"
  • Attachment Dimension (S): 0.281"
  • Attachment Dimension (X): 0.646"
  • Additional Weight Per Attachment: 0.007 LBS
