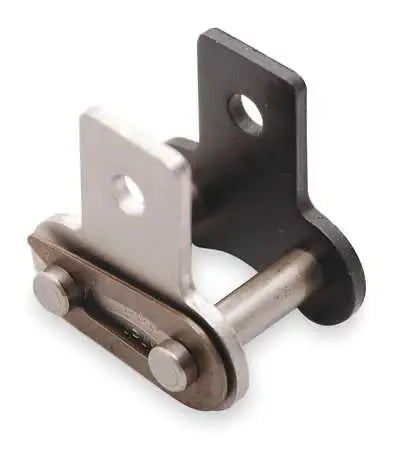

#41 SK-1 Attachment

41 SK-1 Attachment
41 SK-1 Attachment

Note: Se habla espanol


Availability: Typically In-Stock
Product Code: 41-SK-1-ATTACHMENT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

#41 SK-1 attachment is a two side, one hole straight attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #41 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #41 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #41 SK-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #41 SK-1
  • Pitch (P): 0.500"
  • Width Between Roller Links (W): 0.250"
  • Roller Diameter (R): 0.306"
  • Pin Diameter (D): 0.141"
  • Overall Chain Width: 0.532"
  • Overall Connecting Link Width: 0.579"
  • Link Plate Height (H): 0.386"
  • Link Plate Thickness (T): 0.050"
  • Attachment Dimension (C1): 0.500"
  • Attachment Dimension (N): 0.375"
  • Attachment Dimension (O): 0.141"
  • Attachment Dimension (XS): 0.656"
  • Additional Weight Per Attachment: 0.007 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

Click Here To See Our Other Products!


About Us
Features
    • Premium Quality Attachment
    • Manufactured to ANSI Standards
    • Heat-Treated Components
