50SK70 Sprocket (QD Type)

50SK70 Sprocket QD Type 50SK70 Sprocket
50SK70 Sprocket

Our Price: $137.18
Note: Contact Us For Large Quantity Request

Availability: In-Stock
Product Code: 50SK70-SPROCKET

Description Technical Specs

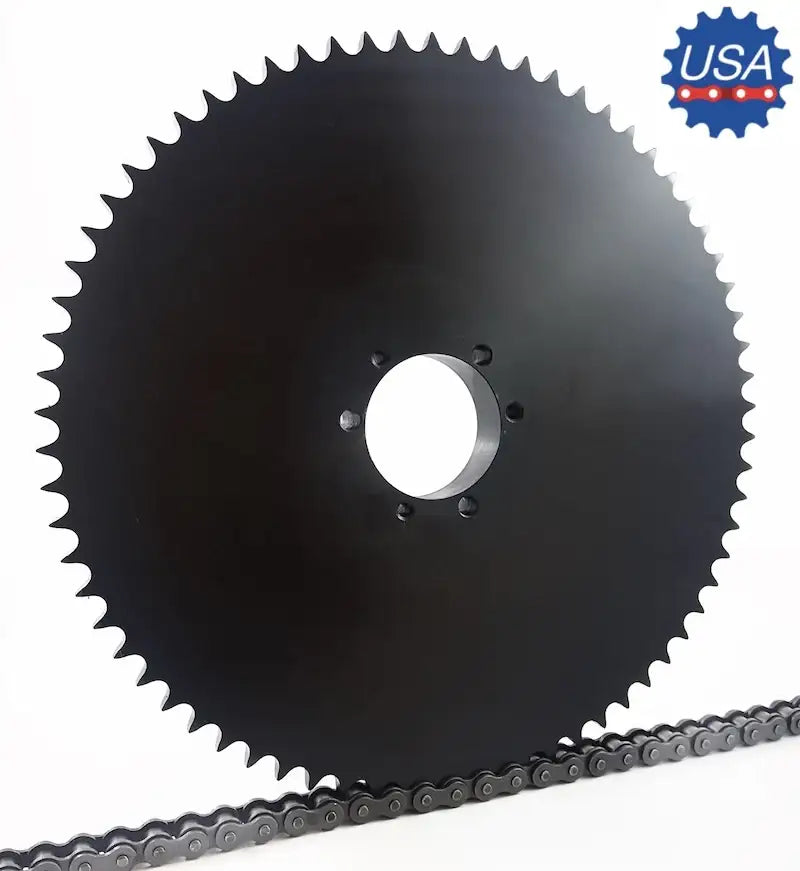

This 50SK70 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept an SK bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket . This also prevents premature wear or breakage and means that the sprocket will directly interchange with other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 50SK70 sprockets are manufactured to accept a SK type QD bushing which, we also stock with a wide range of bore sizes. Additionally offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50SK70 Sprocket Dimensions

  • Sprocket Size: 50SK70
  • Tooth Count: 70
  • Bushing Size: SK
  • Outside Diameter: 14.290"
  • Pitch Diameter: 13.931"
  • Dimension (L1): 2-1/8"
  • Dimension (L2): 2-1/8"
  • Dimension (C): 3-7/8"
  • Dimension (Y): 1-17/32"
  • Dimension (G): 29/32"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.343"
  • Bushing Weight: 2 LBS
  • Sprocket Weight: 15.52 LBS

Phone: (407) 347-3519

About Us
    • Premium Quality Sprocket
    • Manufactured Using High-Quality Steel
    • Fully Meets ANSI Standards
    • Black Oxide Coated
    • Interchangeable With Other Manufactures
    • Extremely Durable and High-Performance
