5310 Chain (Bar Type)

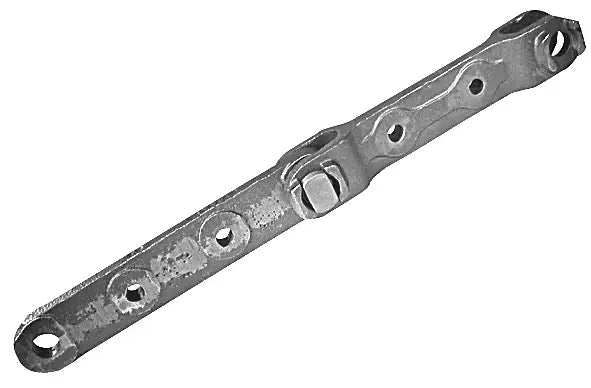

5310 Chain USA 5310 Wash Box Chain
5310 Chain


Availability: Normally In-Stock
Product Code: 5310-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs
This 5310 chain is considered a wash box chain and features an ultimate strength of 66,800 LBS. Wash box chain is primarily used in the ming industry and coal preparation. Due to the highly abrasive application this chain is manufactured to be extremely resistant to the corrosion caused by the sulfur exposer and wet coal washers, it uses high quality alloy steel and heat treated components to ensure strength as well as durability. For more information on 5310 wash box chain or to get a quote please contact us and we will be happy to assist you.


  • Chain Size: 5310
  • Pitch (A): 6.000"
  • Bar Width (B): 2.500"
  • Bar Thickness (C): 0.938"
  • Pin Diameter (D): 1.13"
  • Pin End to Center Line (E): 1.38"
  • Pin Heat to Center Line (F): 1.38"
  • Recommended Working Load: 11,100 LBS
  • Average Ultimate Strength: 66,800 LBS
  • Chain Type: A
  • Chain Weight: 13.4 LBS/ FT

Phone: (407) 347-3519

About Us
    • Premium Wash Box Chain
    • Extremely Heavy Duty
    • Ultra High Strength
    • High Performance
    • Extremely Corrosion Resistant
